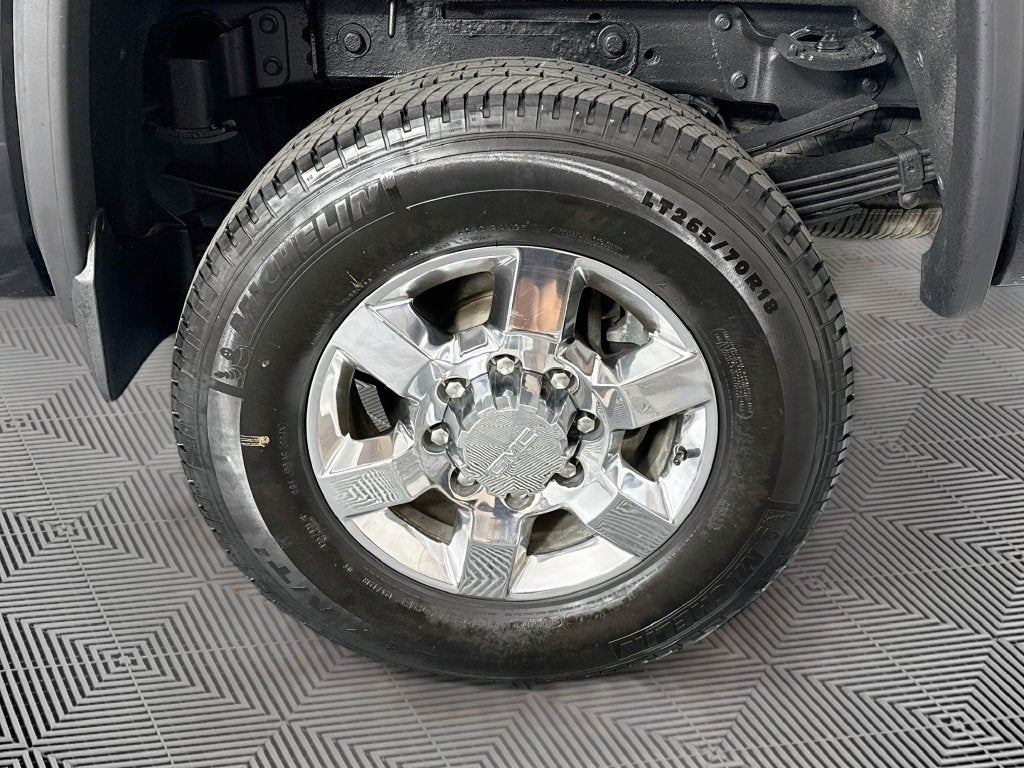

• Wheels, 18" (45.7 cm) chromed aluminum includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered. (Requires single rear wheels.)
• Tires, LT265/70R18E all-season, blackwall (Requires single rear wheels.)
• Tire, spare LT265/70R18E all-season, blackwall (Included and only available with (QWF) LT265/70R18E all-season tires or (QGM) LT265/70R18E all-terrain tires. Available to order when (ZW9) pick-up box delete is ordered.)
• Wheelhouse liners, rear (Requires Crew Cab or Double Cab model. Not available with dual rear wheels. Deleted with (ZW9) pickup box delete.)
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door (Not included when (ZW9) pickup box delete or (9J4) rear bumper delete is ordered.)
• Bumper, front chrome
• Bumper, rear chrome with bumper CornerSteps
• CornerStep, rear bumper
• Moldings, bodyside, chrome

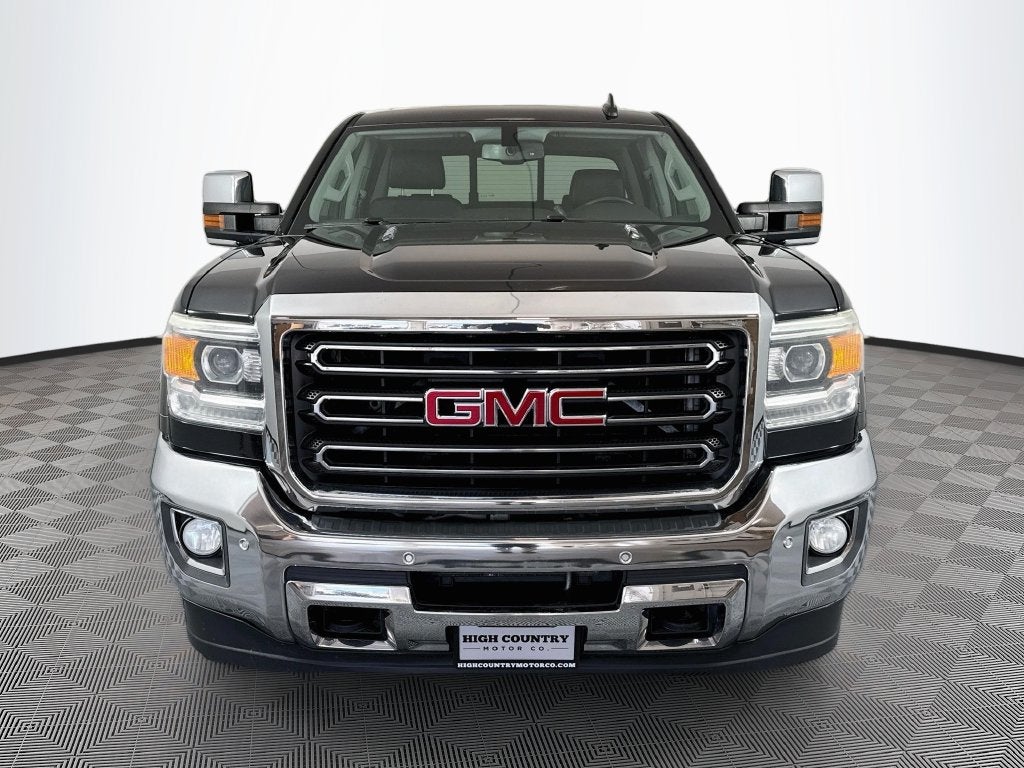

• Grille surround, chrome
• Headlamps, high intensity discharge (HID) projector-beam with GMC signature LED lighting
• Fog lamps, front, halogen
• Lamps, cargo area, cab mounted with switch on center switch bank
• LED Lighting, cargo box with switch on center switch bank (Deleted when (ZW9) pickup box delete is ordered.)
• Mirrors, outside heated power-adjustable vertical trailering, memory-equipped, upper glass, power-folding and manual extending, chrome; includes integrated turn signal indicators, consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
• Glass, deep-tinted
• Door handles, chrome
• Tailgate and bed rail protection caps, top
• Tailgate, EZ-Lift and Lower (Deleted when (ZW9) pickup box delete is ordered.)

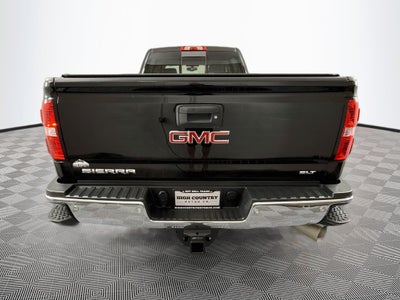

• Remote Locking Tailgate
• Cargo ties downs (4), movable upper (Deleted when (ZW9) pickup box delete is ordered.)

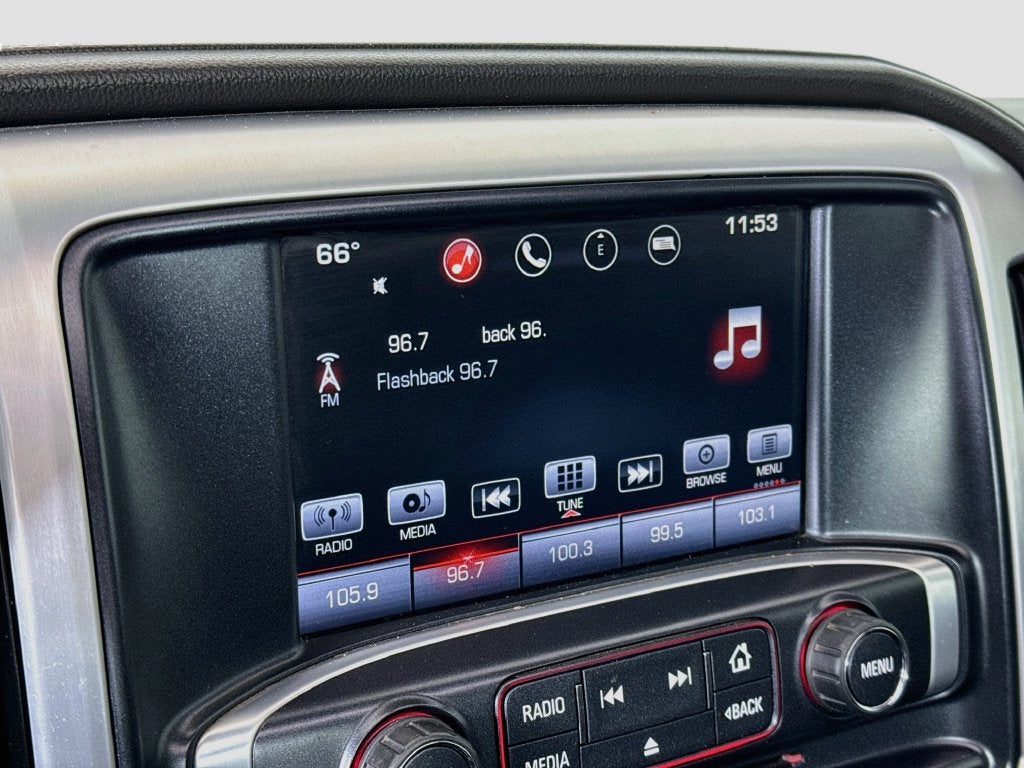

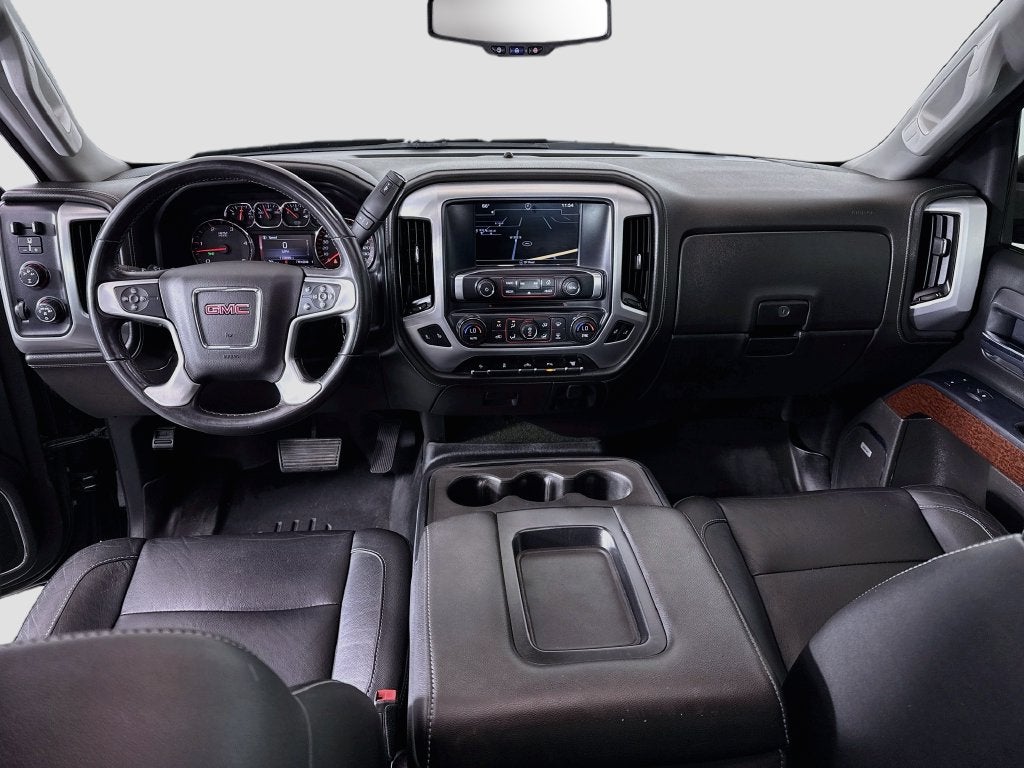

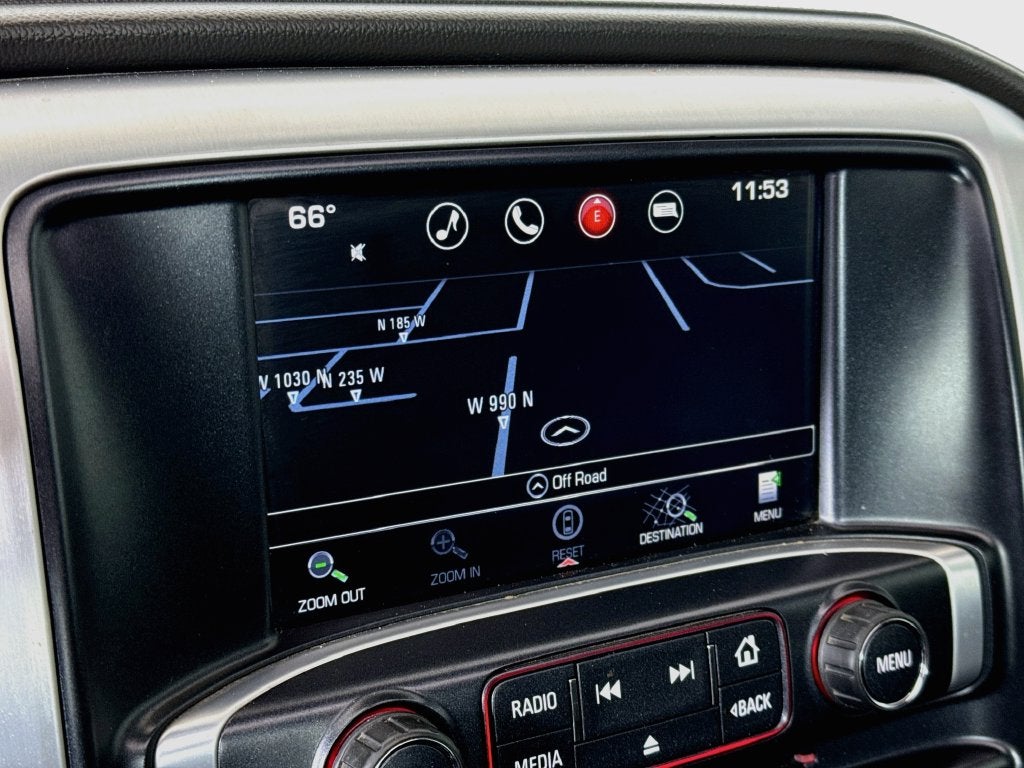

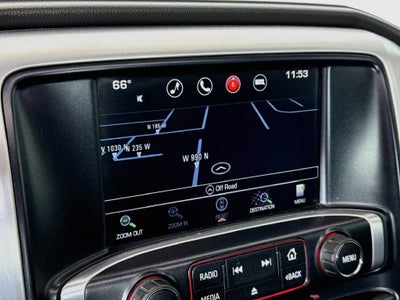

• Audio system, 8" Diagonal Color Touch Screen with IntelliLink, AM/FM/SiriusXM, HD Radio with USB ports, auxiliary jack, Bluetooth® streaming audio for music and most phones, Pandora Internet radio and voice-activated technology for radio and phone (Upgradeable to (IO6) 8" Diagonal Color Touch Screen Navigation with IntelliLink.)
• Single-slot CD/MP3 player (On Crew Cab replaced by (U42) rear seat DVD/Blu-Ray Entertainment Package when (U42) is ordered.)
• SiriusXM Satellite Radio is standard on most 2016 GM models. Enjoy a 3-month XM Select+ trial with 130 channels including commercial-free music, plus news, talk, sports and comedy. Every trial comes with free online listening, which lets you take all your favorite programming anywhere. Listen on your computer, smartphone or tablet to find your sound. (The use of the SiriusXM Canada radio service constitutes acceptance of our Customer Agreement available at siriusxm.ca/terms and are used under license. If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. To cancel you must call us at 1-877-209-0079. All fees and programming subject to change.)
• Radio, HD
• 6-speaker audio system
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system

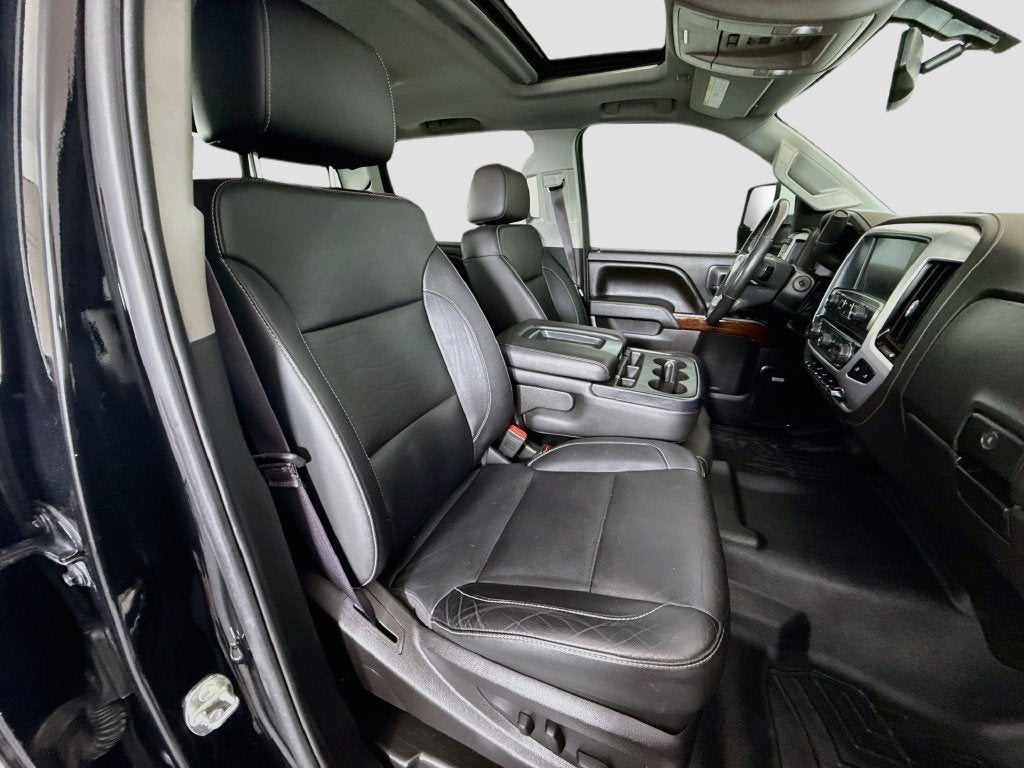

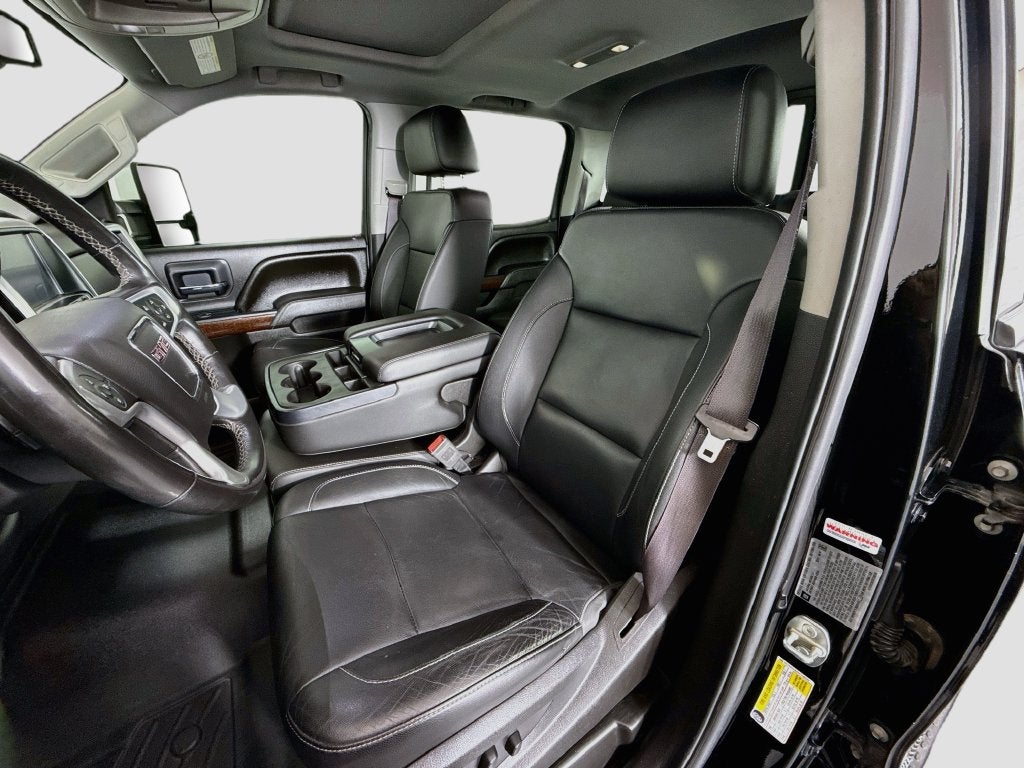

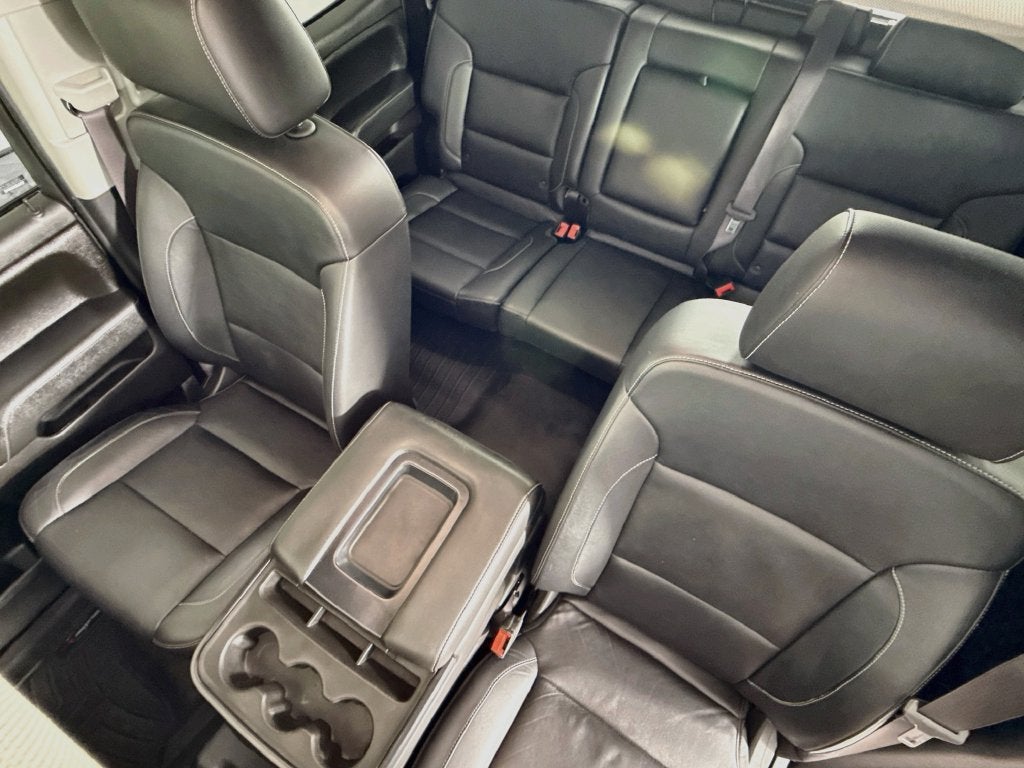

• Seats, front 40/20/40 leather-appointed split-bench, 3-passenger with (KA1) heated seat cushions and seat backs. Includes 10-way power driver and front passenger seat adjusters, including driver/front passenger power recline, driver/front passenger power lumbar, 2- position driver memory and adjustable outboard head restraints. (Upgradeable to (AN3) front full-feature leather-appointed bucket seats.)
• OnStar with 4G LTE and built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds includes 3GB or 3 months OnStar Data Trial (whichever comes first) (Available 4G LTE Wi-Fi requires compatible mobile device, active OnStar subscription and data plan after trial.)

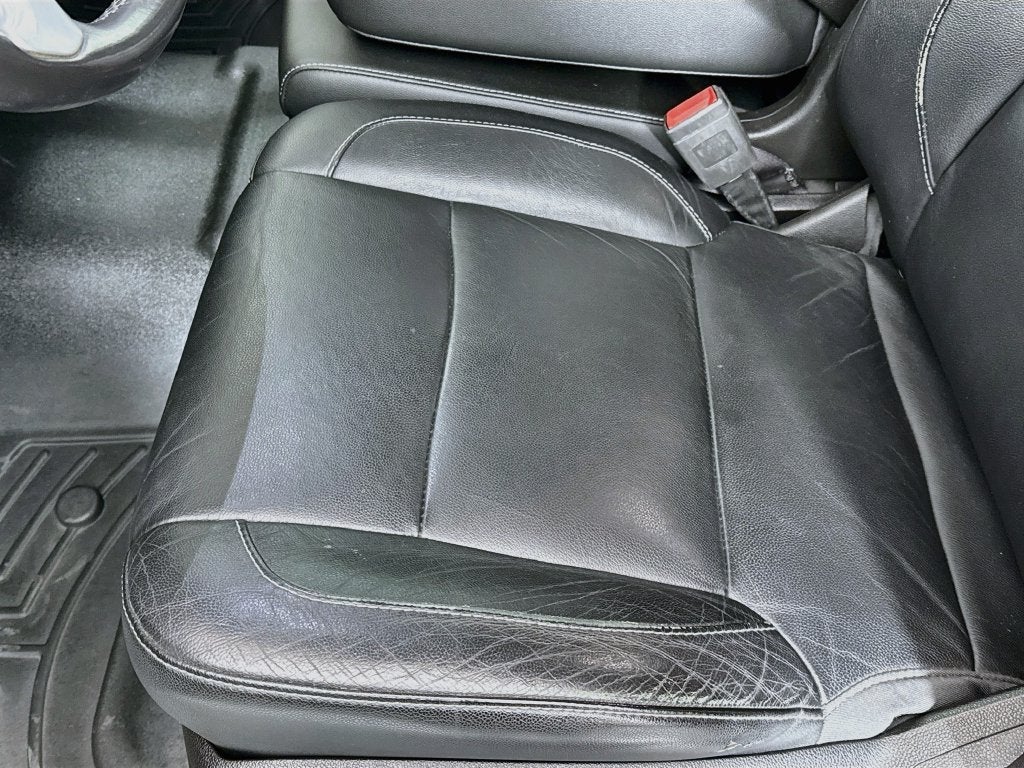

• Seat trim, Leather-appointed front seats

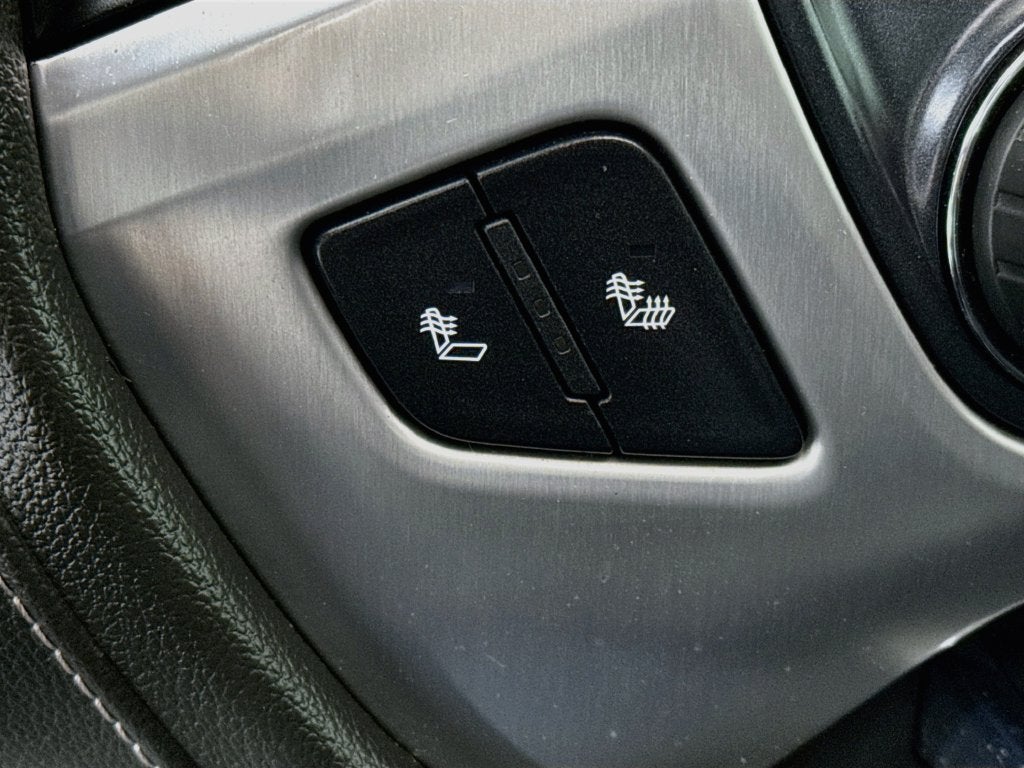

• Seating, heated driver and front passenger Only available on Crew Cab and Double Cab models.

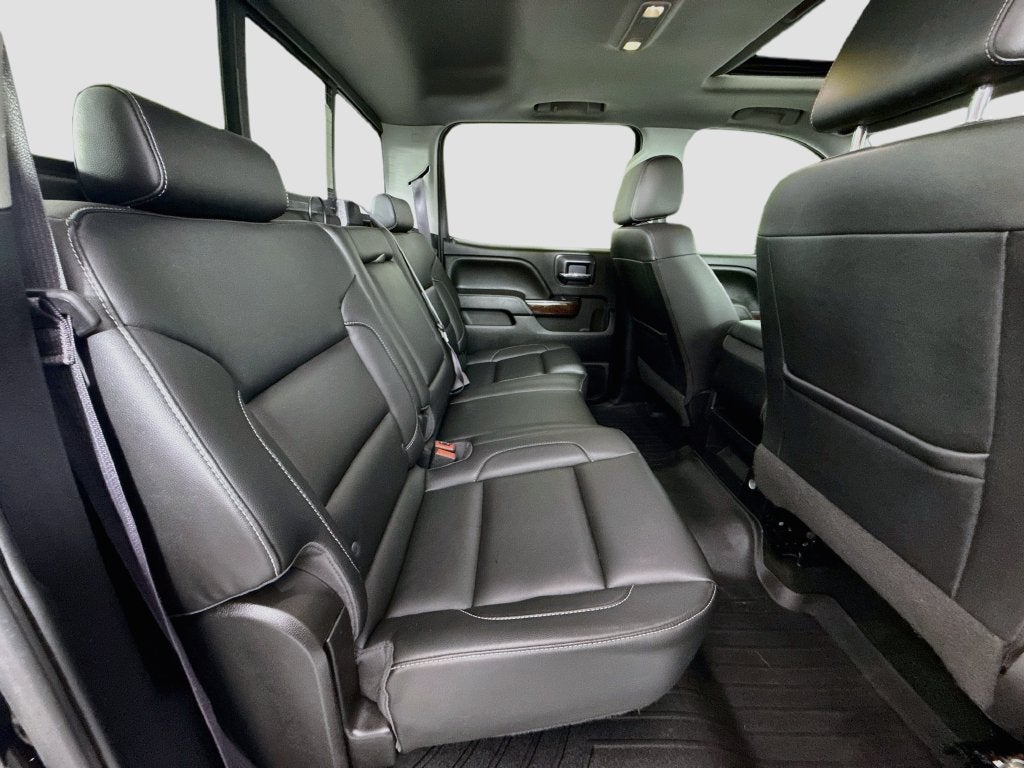

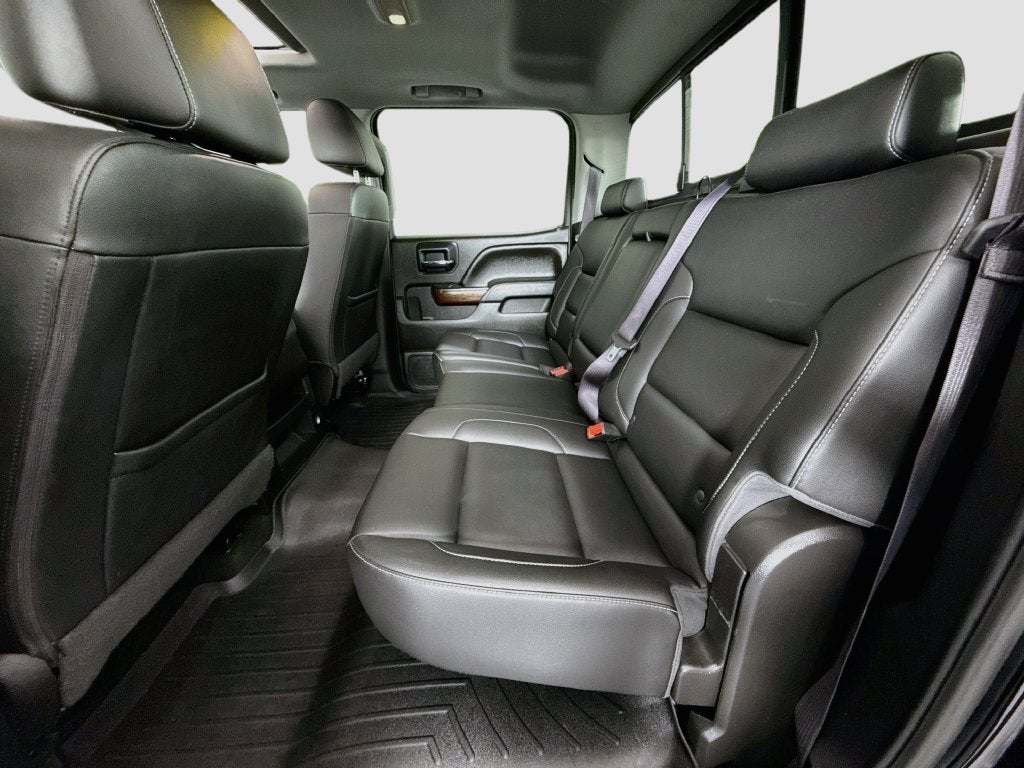

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Double Cab and Crew Cabs include second row floor mats)

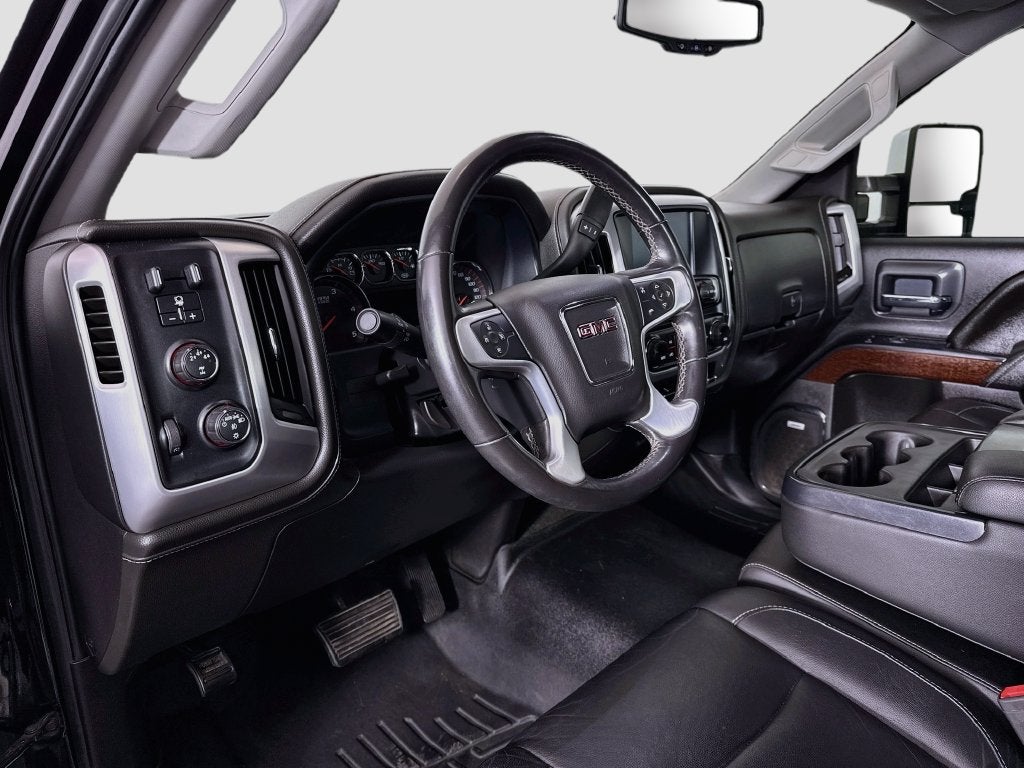

• Steering column, manual Tilt-Wheel and telescoping

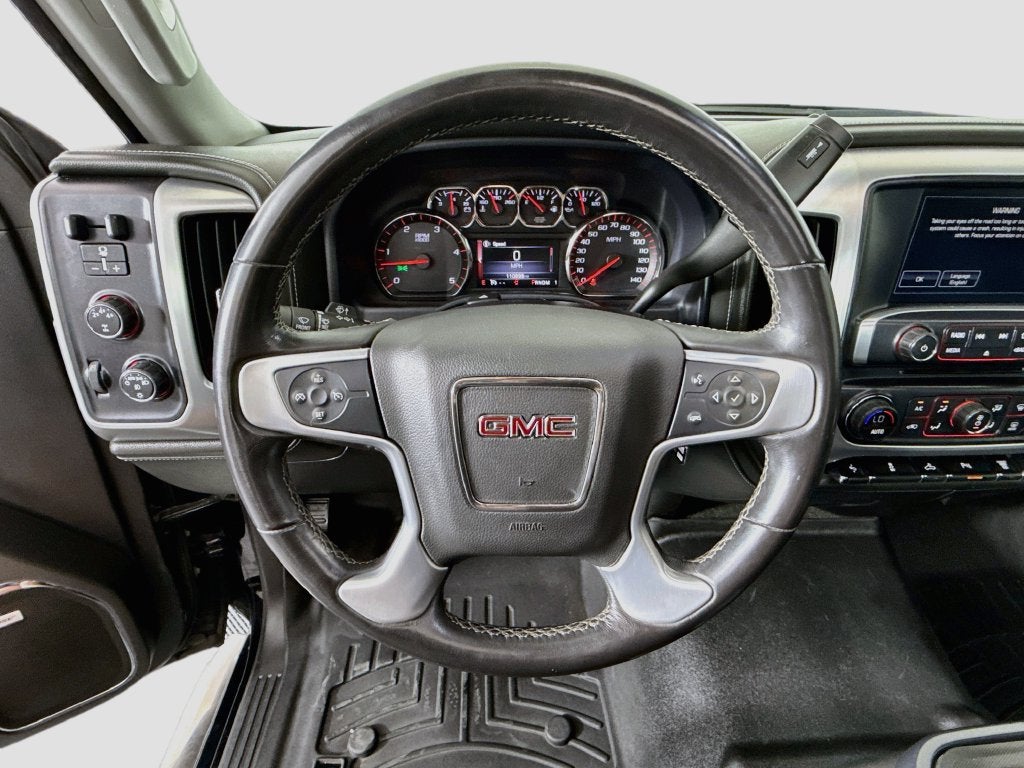

• Steering wheel, leather-wrapped with audio and cruise controls
• Steering wheel audio controls

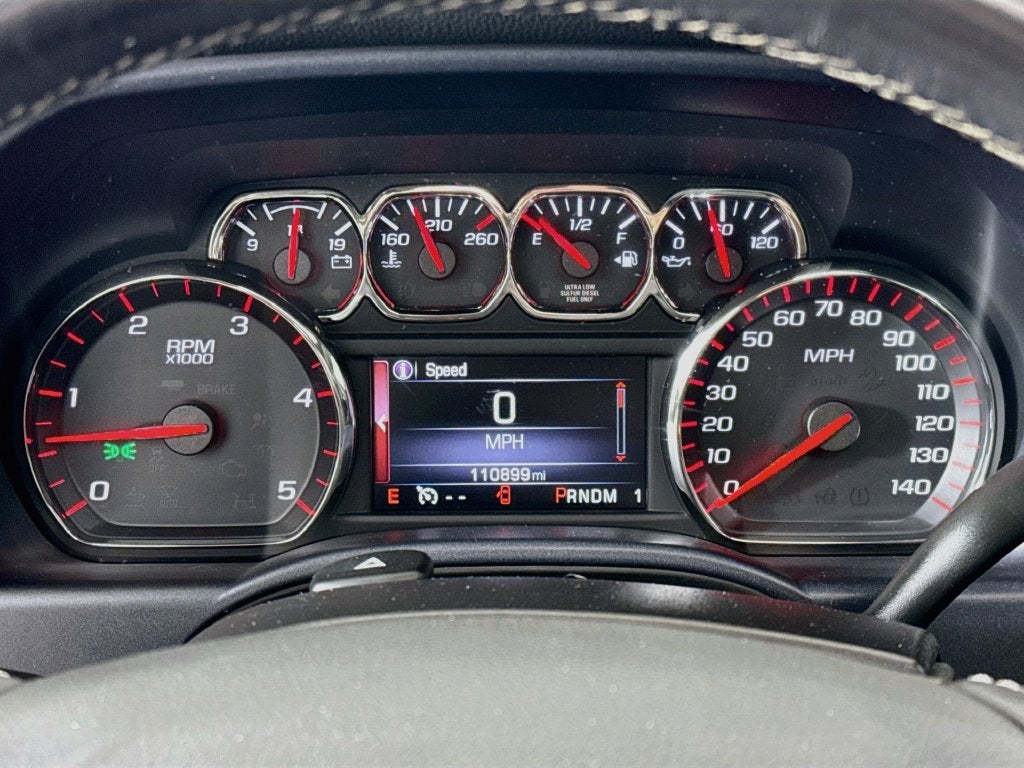

• Driver Information Center 4.2-inch diagonal color display, includes driver personalization, warning messages and vehicle information

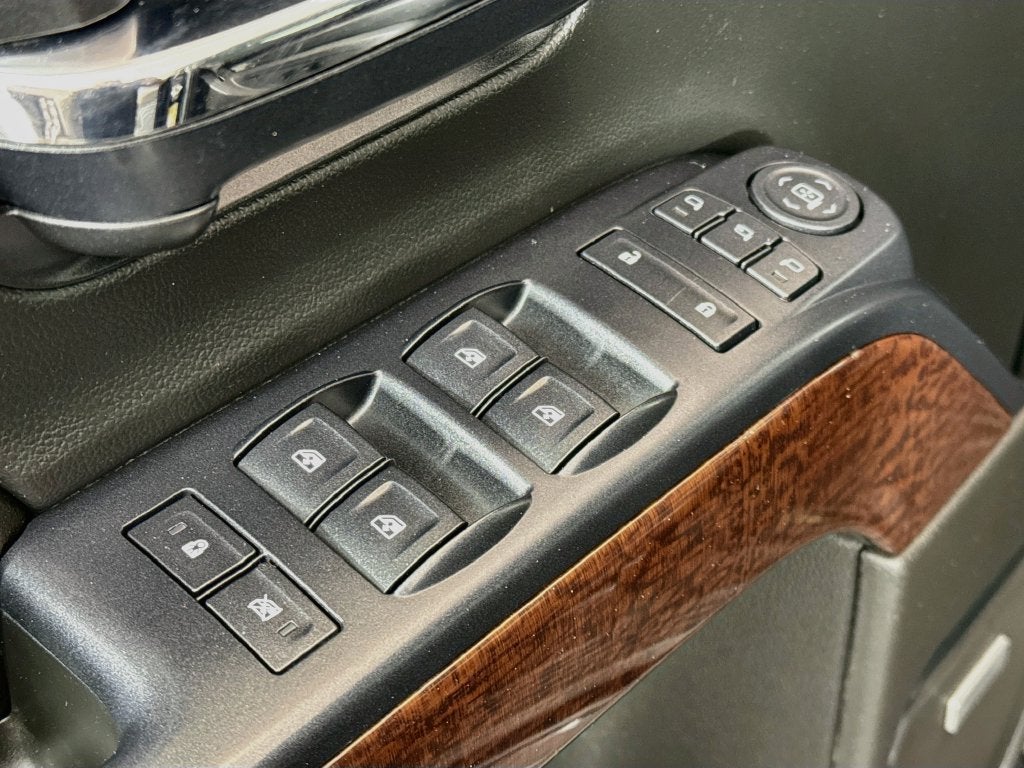

• Windows, power with driver express up and down and express down on all other windows
• Door locks, power
• Remote Keyless Entry
• Remote vehicle starter system
• Pedals, power-adjustable for Crew Cab and Double Cab models
• Cruise control, steering wheel-mounted
• Universal Home Remote (Not included when (TRW) provision for cab roof-mounted lamp or (VYU) Snow Plow Prep Package are ordered.)
• Theft-deterrent system, unauthorized entry

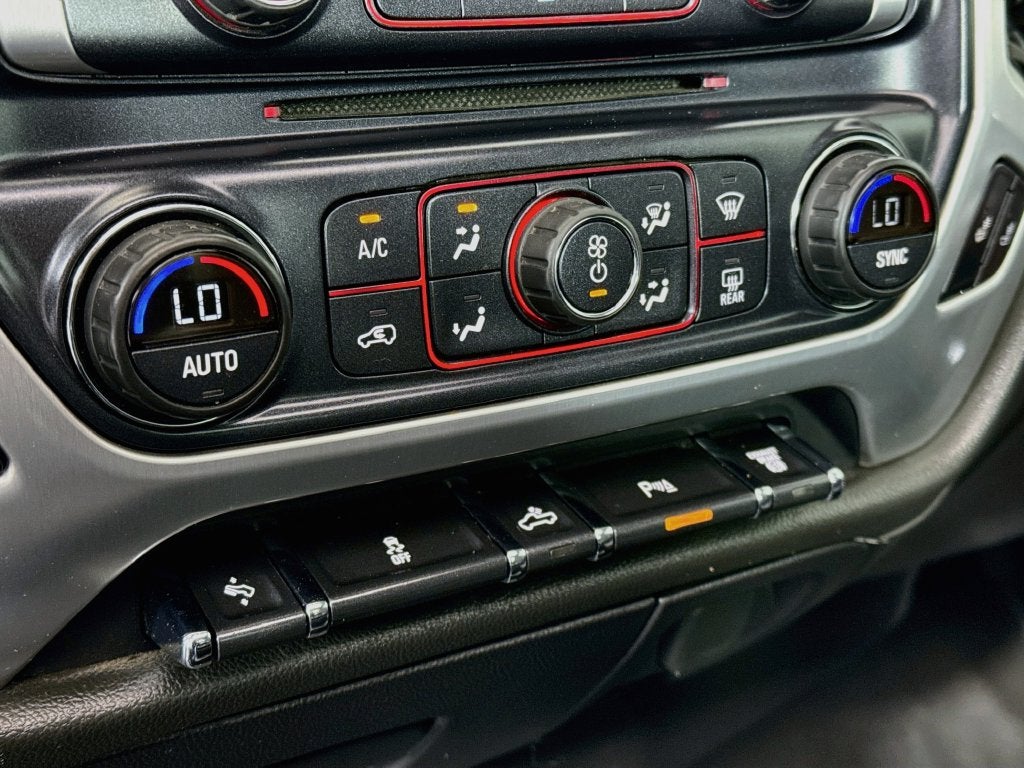

• Air conditioning, dual-zone automatic climate control Only available on Crew Cab and Double Cab models.
• Defogger, rear-window electric
• Power outlet, 110-volt AC
• Mirror, inside rearview auto-dimming
• Visors, driver and front passenger illuminated vanity mirrors
• Assist handle, front passenger and driver on A-pillars
• OnStar Guidance Plan for 6 months including Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance, Turn-by-Turn Navigation and more (trial excludes Hands-Free Calling) (Visit www.onstar.com for coverage map, details and system limitations. Services may vary by model and conditions.)

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, single-stage frontal and thorax side-impact, driver and front passenger, and head curtain side-impact, front and rear outboard seating positions (Required with (C7A) 10,000 lb. (4536 kg) GVWR. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, frontal, driver and right front passenger, single stage (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)

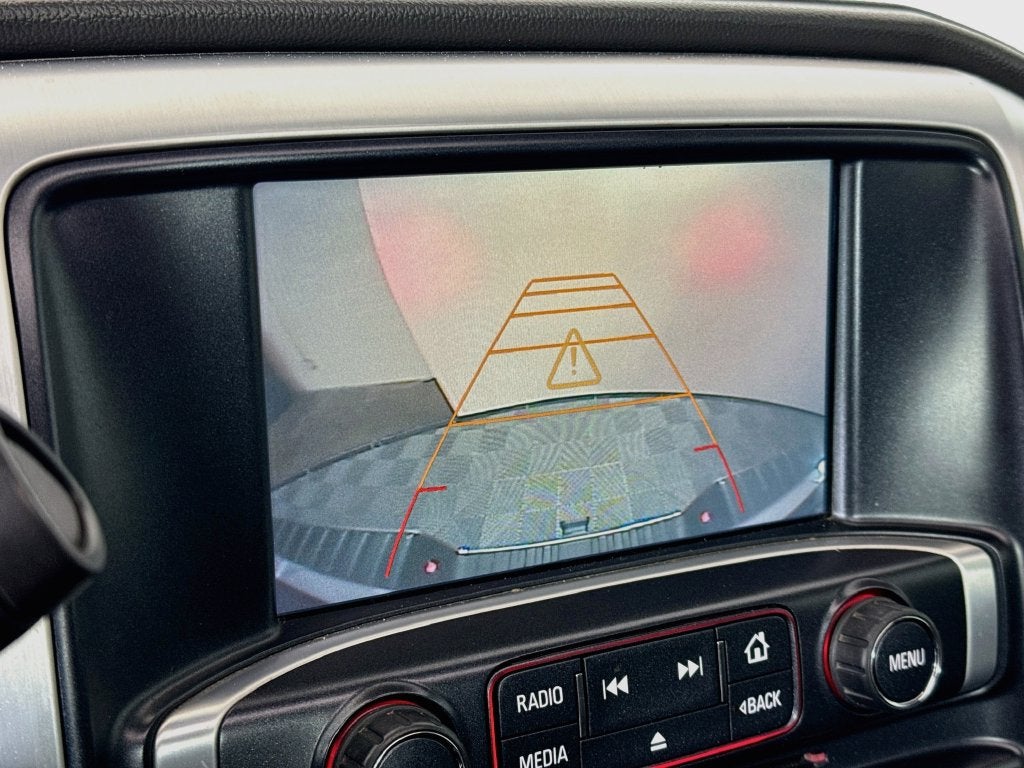

• Rear Vision Camera with dynamic guide lines (Not included when (ZW9) pickup box delete is ordered.)
• Tire Pressure Monitoring System (does not apply to spare tire) (Included and only available with (C7A) 10,000 lb. (4536 kg) GVWR.)

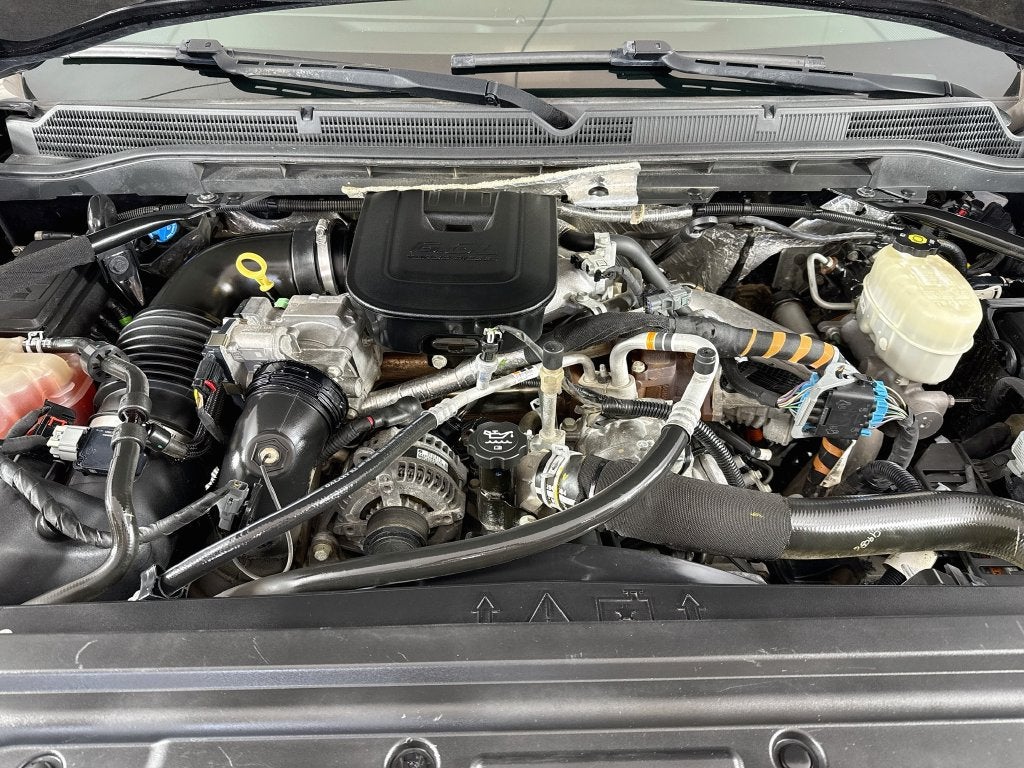

ENGINE, DURAMAX 6.6L TURBO DIESEL V8, B20-DIESEL COMPATIBLE

• (397 hp [296.0 kW] @ 3000 rpm
• 765 lb-ft of torque [1032.8 N-m] @ 1600 rpm) Includes (K40) exhaust brake and (K05) engine block heater.

• Duramax Plus Package
• Preferred Equipment Group 4SA
• Standard Suspension Package
• Trailering Equipment
• 6 Speakers
• 6-Speaker Audio System
• AM/FM radio: SiriusXM

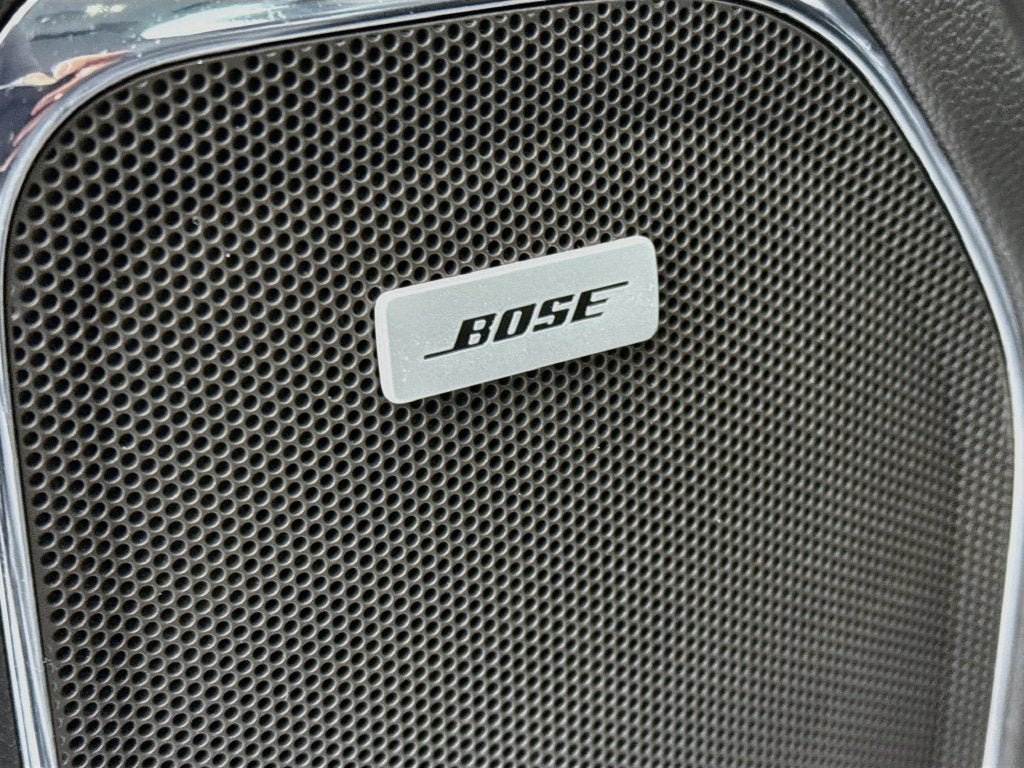

• Bose Speaker System
• CD player
• HD Radio
• Premium audio system: IntelliLink
• Radio: AM/FM/SiriusXM w/IntelliLink
• Radio: AM/FM/SiriusXM w/IntelliLink & Navigation
• Single-Slot CD/MP3 Player
• SiriusXM Satellite Radio
• Steering Wheel Audio Controls
• Air Conditioning
• Automatic temperature control
• Dual-Zone Automatic Climate Control
• Electric Rear-Window Defogger
• Front dual zone A/C
• Rear window defroster
• 110-Volt AC Power Outlet
• Memory seat
• Pedal memory
• Power driver seat
• Power steering
• Power Windows
• Power windows
• Remote Keyless Entry
• Remote keyless entry
• Remote Vehicle Starter System
• Steering wheel mounted audio controls
• Universal Home Remote
• Manual Tilt-Wheel/Telescoping Steering Column
• Speed-sensing steering
• Traction control
• 4-Wheel Disc Brakes
• ABS brakes
• Digital Steering Assist
• Dual front impact airbags
• Dual front side impact airbags
• Emergency communication system: OnStar Guidance
• Front anti-roll bar
• Front wheel independent suspension
• Low tire pressure warning
• Occupant sensing airbag
• Overhead airbag
• Remote Locking Tailgate
• Power Sunroof
• Brake assist
• Electronic Stability Control
• Exterior Parking Camera Rear
• Delay-off headlights
• Front fog lights
• Front Halogen Fog Lamps
• Fully automatic headlights
• High-Intensity Discharge Headlights
• Panic alarm
• Security system
• Unauthorized Entry Theft-Deterrent System
• Speed control
• 150 Amps Alternator
• Engine Block Heater
• Exhaust Brake
• 1-Piece Radiator Grille & Fr Bumper Opening Cover
• Bodyside moldings
• Bumpers: chrome
• Chrome Bodyside Moldings
• Chrome Door Handles
• Chrome Power-Adjustable Heated Outside Mirrors

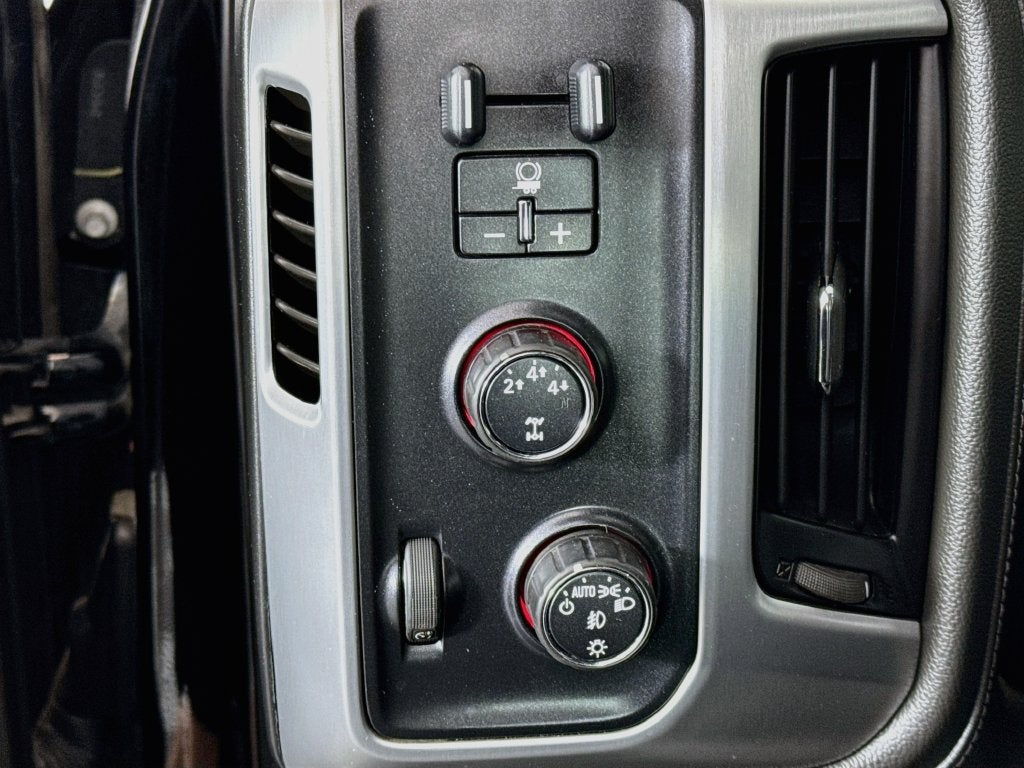

• Electronic Shift Transfer Case

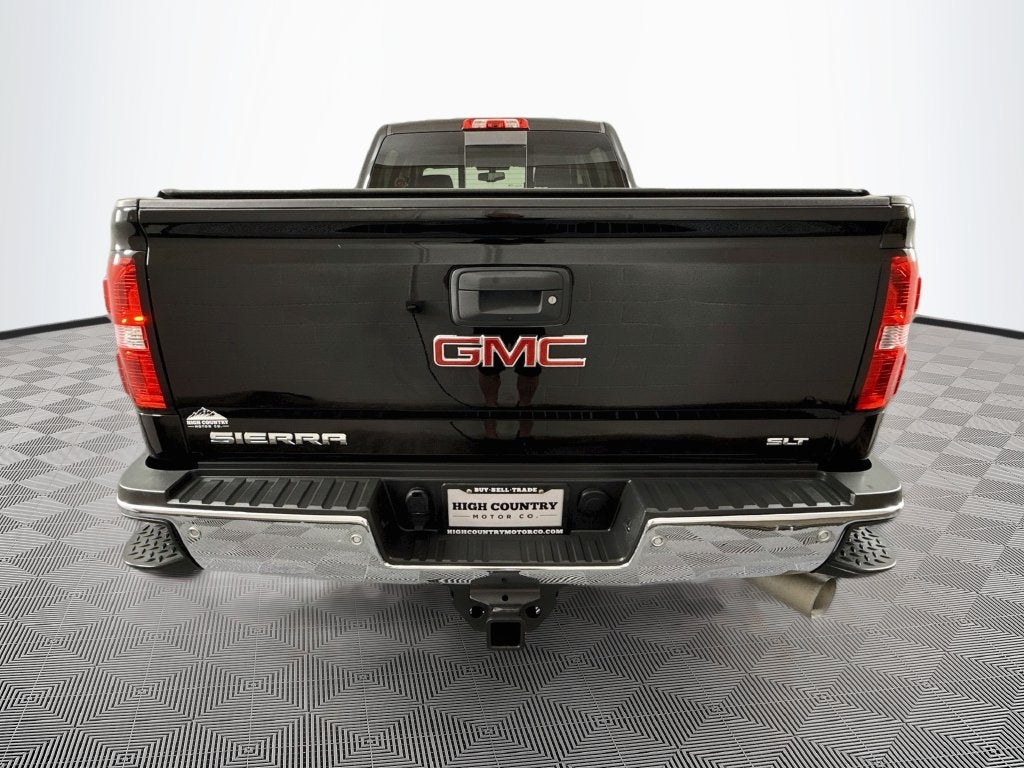

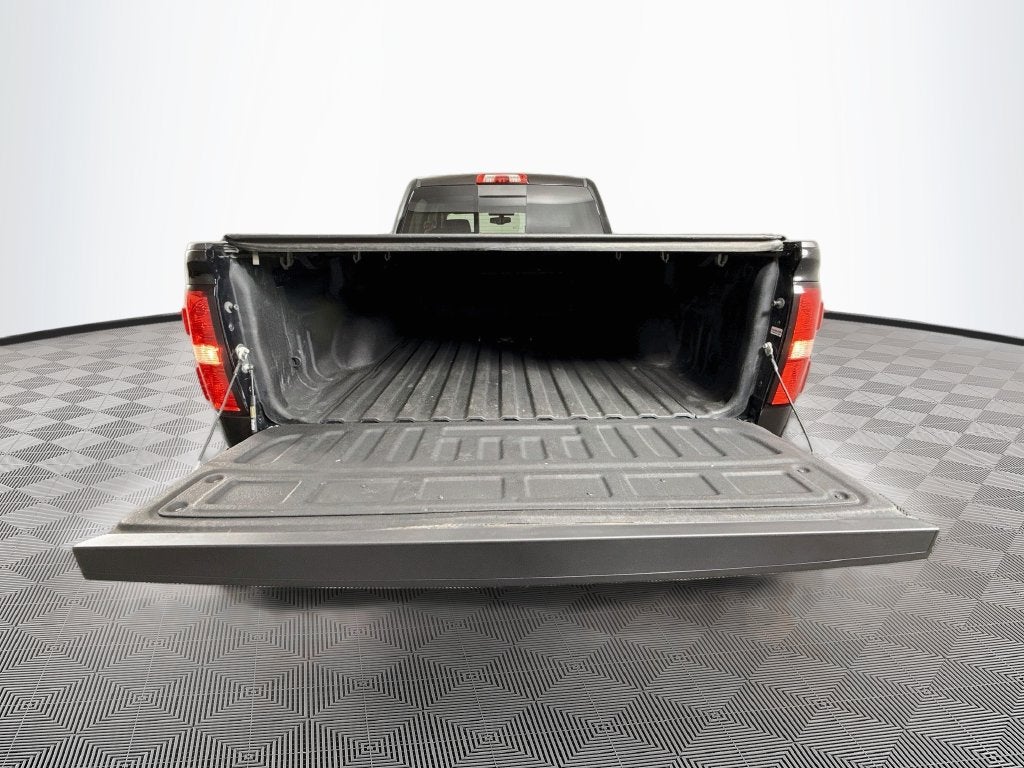

• EZ-Lift & Lower Tailgate
• Front License Plate Kit
• Heated door mirrors
• LED Cargo Box Lighting
• Power door mirrors
• Rear step bumper
• Rear Wheelhouse Liners
• Turn signal indicator mirrors
• 4.2" Diagonal Color Display Driver Info Center
• Adjustable pedals
• Auto-Dimming Inside Rear-View Mirror
• Auto-dimming Rear-View mirror
• Color-Keyed Carpeting Floor Covering
• Compass
• Driver & Front Passenger Visors
• Driver door bin
• Driver vanity mirror
• Front reading lights
• Garage door transmitter
• Illuminated entry
• Leather-Wrapped Steering Wheel
• OnStar Guidance Plan For 6 Months
• OnStar w/4G LTE
• Outside temperature display
• Overhead console
• Passenger vanity mirror
• Power Adjustable Pedals
• Rear reading lights
• Rear seat center armrest
• Rear Vision Camera w/Dynamic Guide Lines
• Tachometer
• Telescoping steering wheel
• Tilt steering wheel
• Trip computer
• Ultrasonic Front & Rear Park Assist
• Voltmeter
• Front 40/20/40 Split Bench Seat
• Heated Driver & Front Passenger Seats
• Heated front seats
• Leather-Appointed Seat Trim
• Power passenger seat
• Rear 60/40 Folding Bench Seat (Folds Up)
• Split folding rear seat
• Front Center Armrest w/Storage
• Passenger door bin
• 18" Chromed Aluminum Wheels
• Alloy wheels
• Chrome wheels
• Deep-Tinted Glass
• Power Sliding Rear Window w/Defogger
• Variably intermittent wipers

• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 7050
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 10000
• Gross Combined Wt Rating (lbs): 24500
• Gross Combined Wt Rating (lbs): 20500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): - TBD -
• Wt Distributing Hitch - Max Tongue Wt. (lbs): - TBD -
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 17200
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): - TBD -
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4300
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): - TBD -
• Maximum Trailering Capacity (lbs): 17100
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 7050
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 5600
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 7050
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51.00
• Shock Absorber Diameter - Rear (mm): 51.00
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: QWF
• Rear Tire Order Code: QWF
• Front Tire Size: LT265/70R18E
• Rear Tire Size: LT265/70R18E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 18 x 8.0
• Rear Wheel Size (in): 18 x 8.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: 16.00
• Steering Ratio (:1), At Lock: N/A
• Turning Diameter - Curb to Curb (ft): 51.8
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 153.70
• Length, Overall w/o rear bumper (in): 239.5
• Width, Max w/o mirrors (in): 80.51
• Height, Overall (in): 78.15
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 151.10
• Cab to Axle (in): 41.26
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 39.33
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.42
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.86
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 51.02
• Cargo Box (Area) Height (in): 21.22
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 61.0
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Front Hip Room (in): 60.73
• Second Head Room (in): 40.50
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 64.33
• Second Hip Room (in): 60.24
• Summary

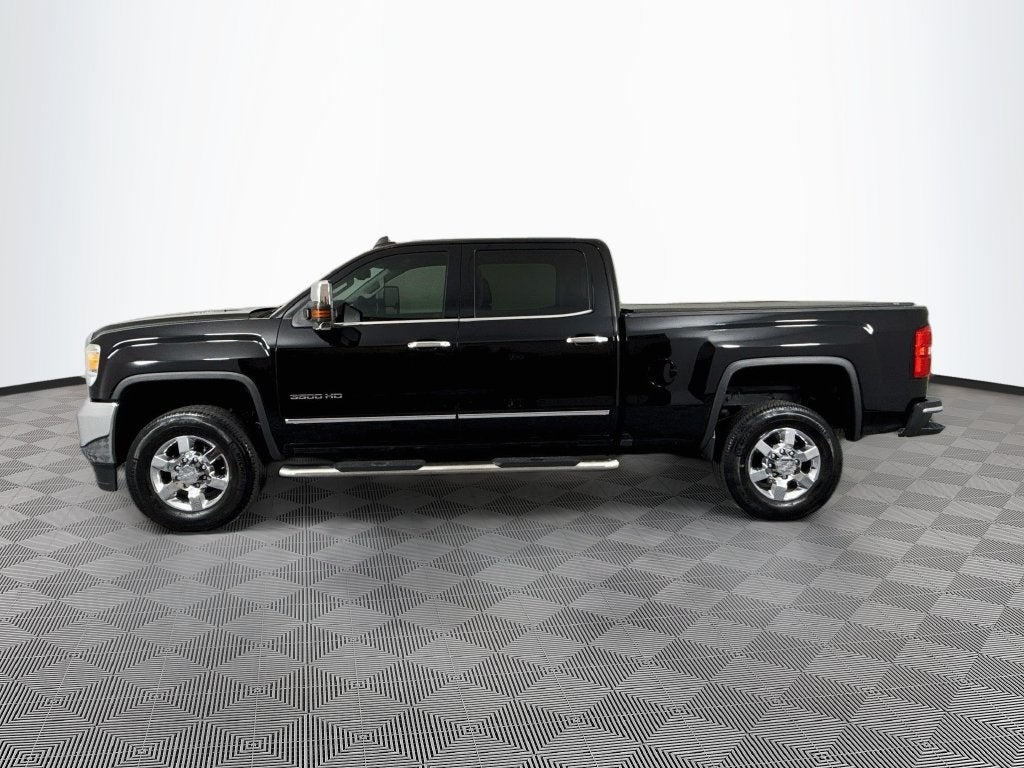

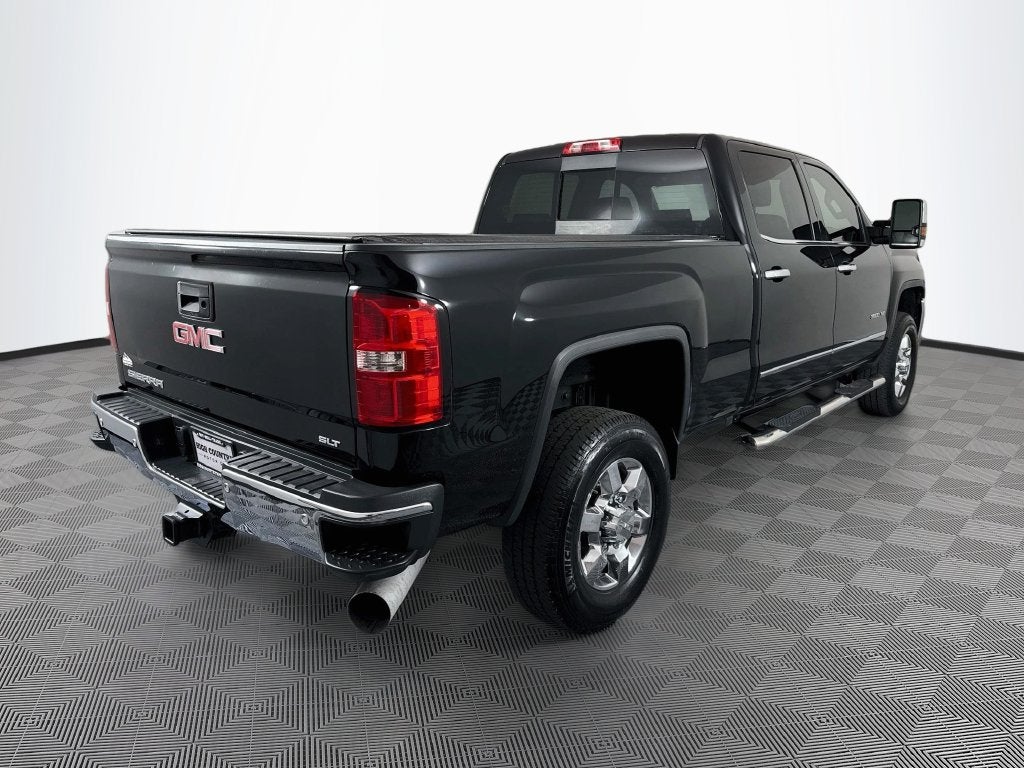

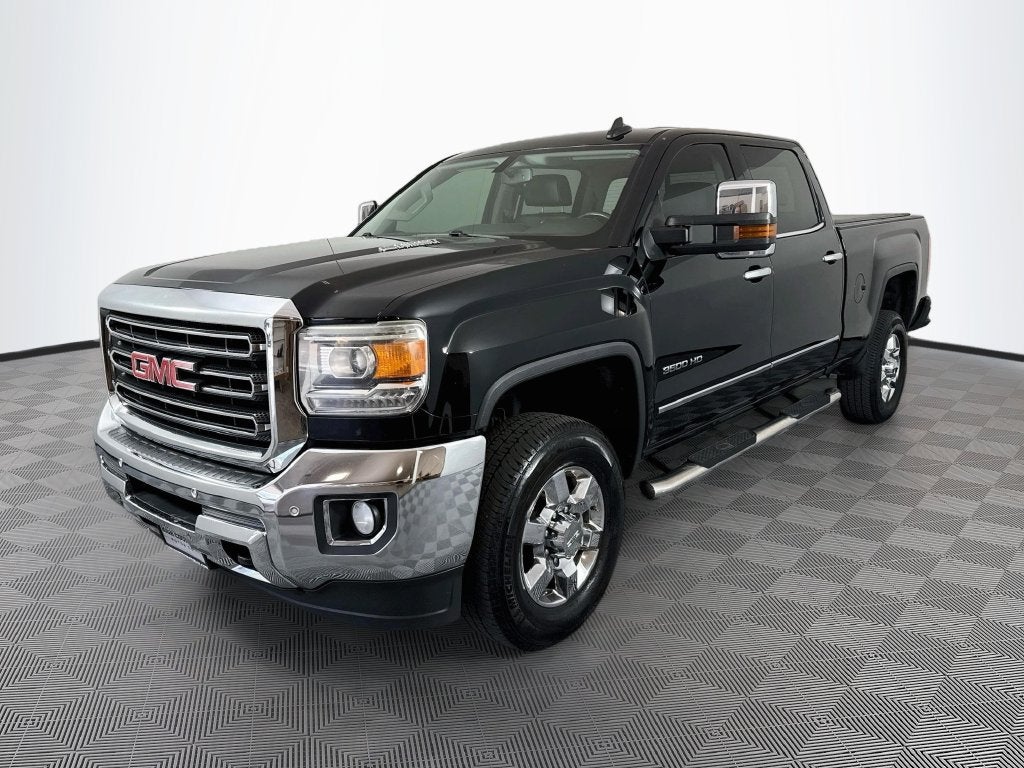

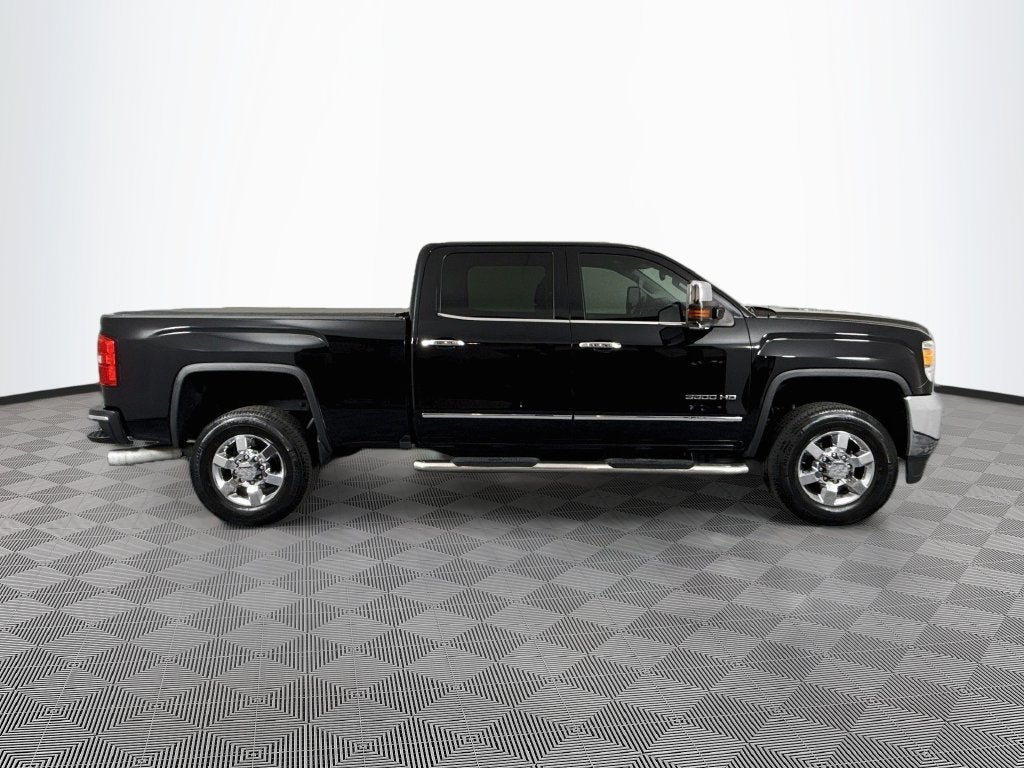

• Vehicle Name: GMC Sierra 3500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
