• Paint, solid
• Bumper, front chrome with Gray lower

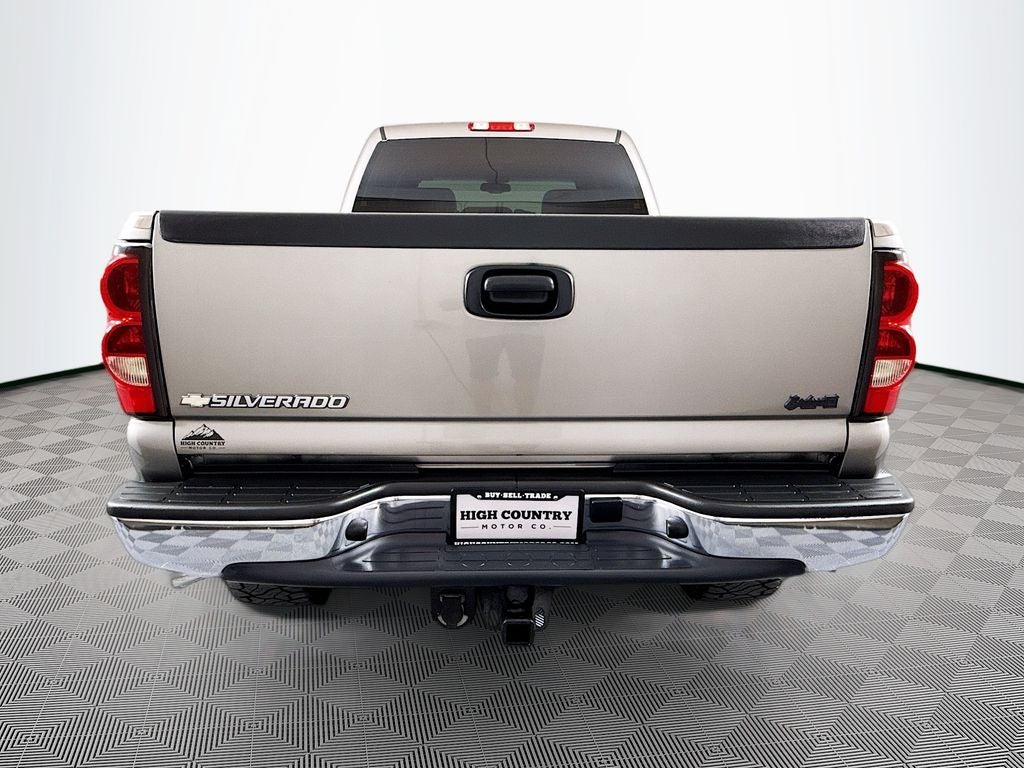

• Bumper, rear painted, step-style with pad (Not available with (ZW9) pickup box delete.)
• Air dam, Gray
• Wheel flares, front and rear (Refer to Color and Trim chart for compatibility. Front only when (ZW9) pickup box delete is ordered.)
• Grille, color-keyed surround with chrome accent bar
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Daytime Running Lamps, with automatic exterior lamp control
• Lamps, dual cargo area lamps
• Mirrors, outside manual, Black, manual-folding
• Glass, Solar-Ray light-tinted, all windows
• Wipers, front intermittent wet-arm with pulse washers

• Seat trim, vinyl

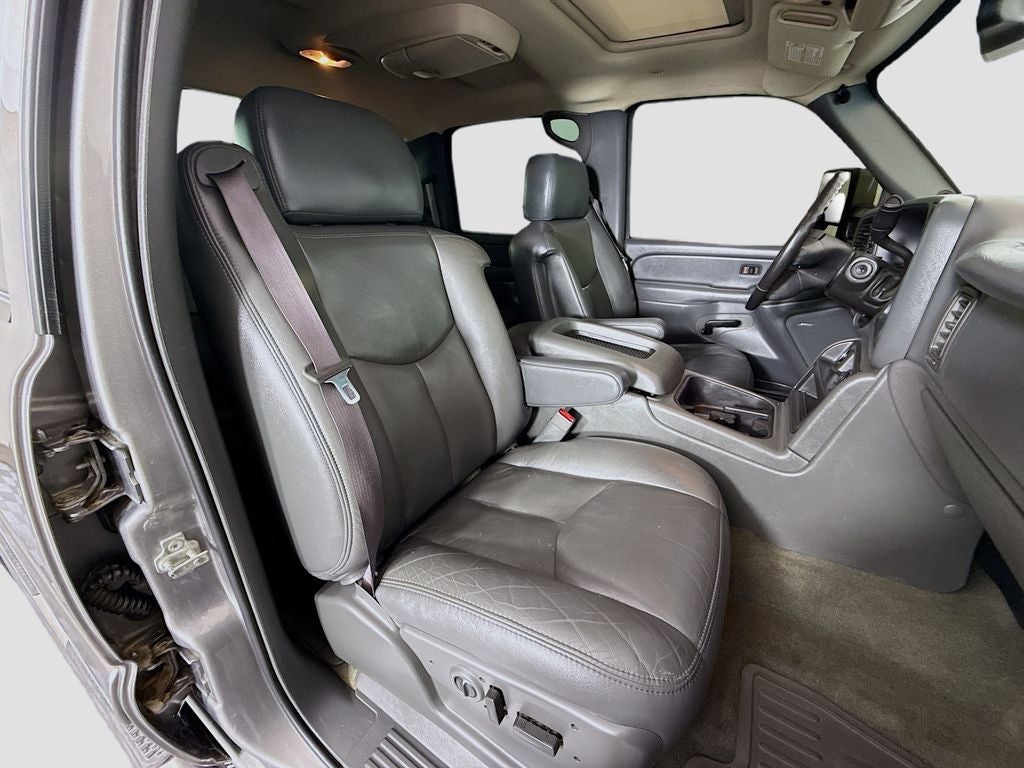

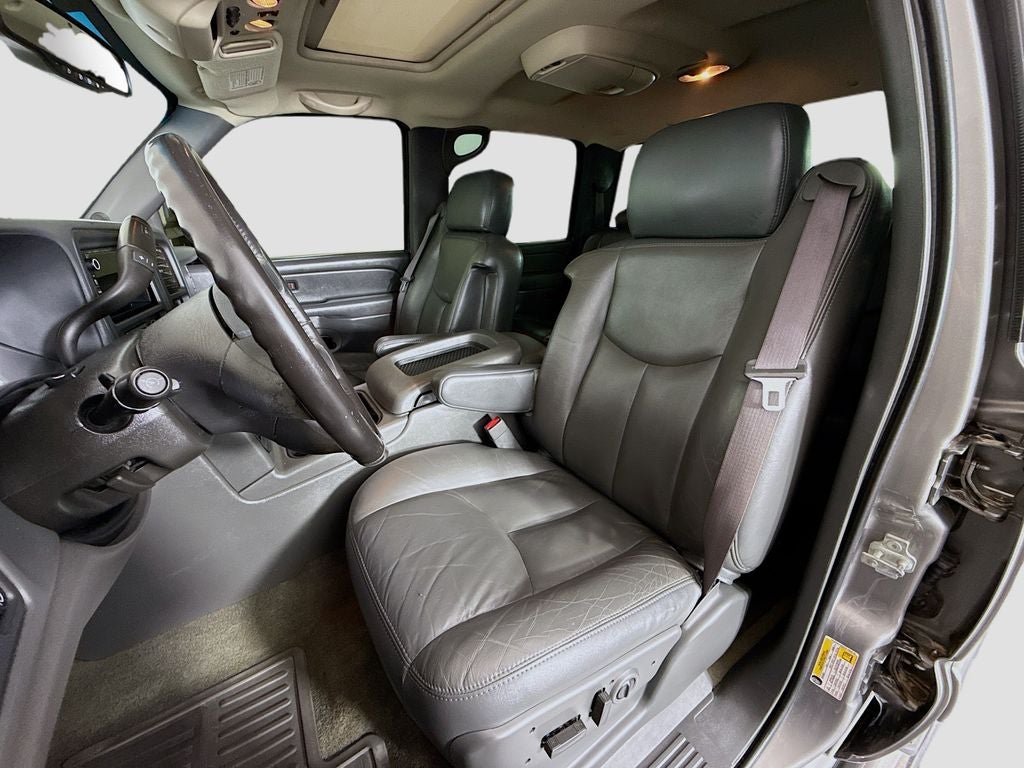

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual reclining with outboard head restraints

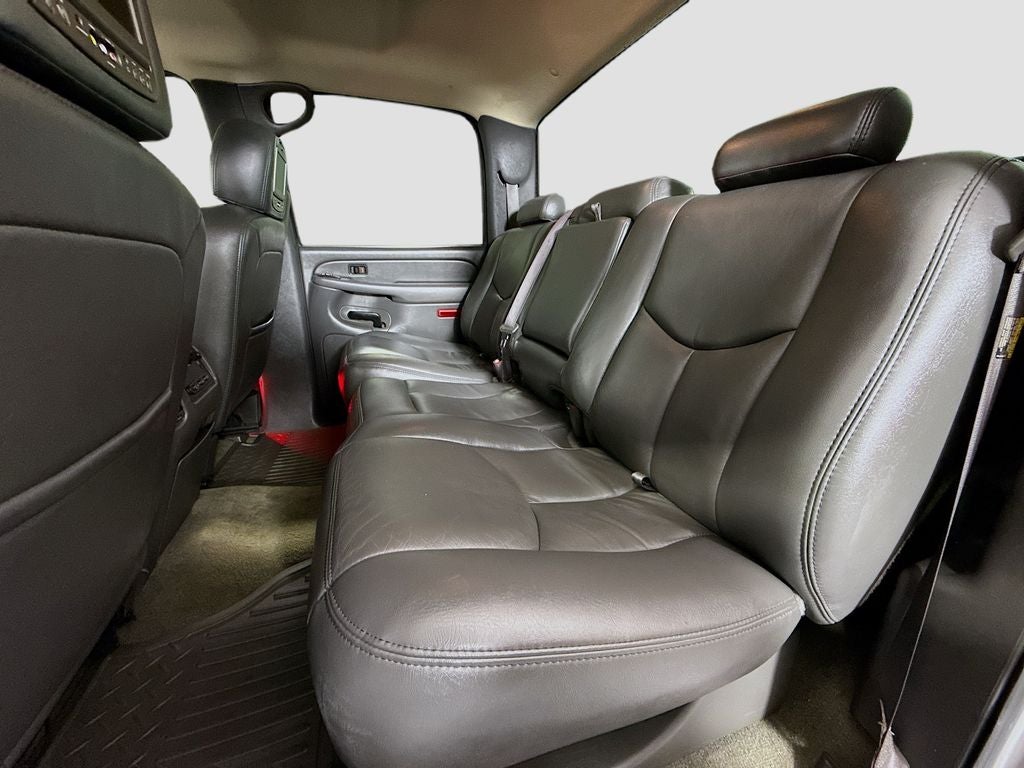

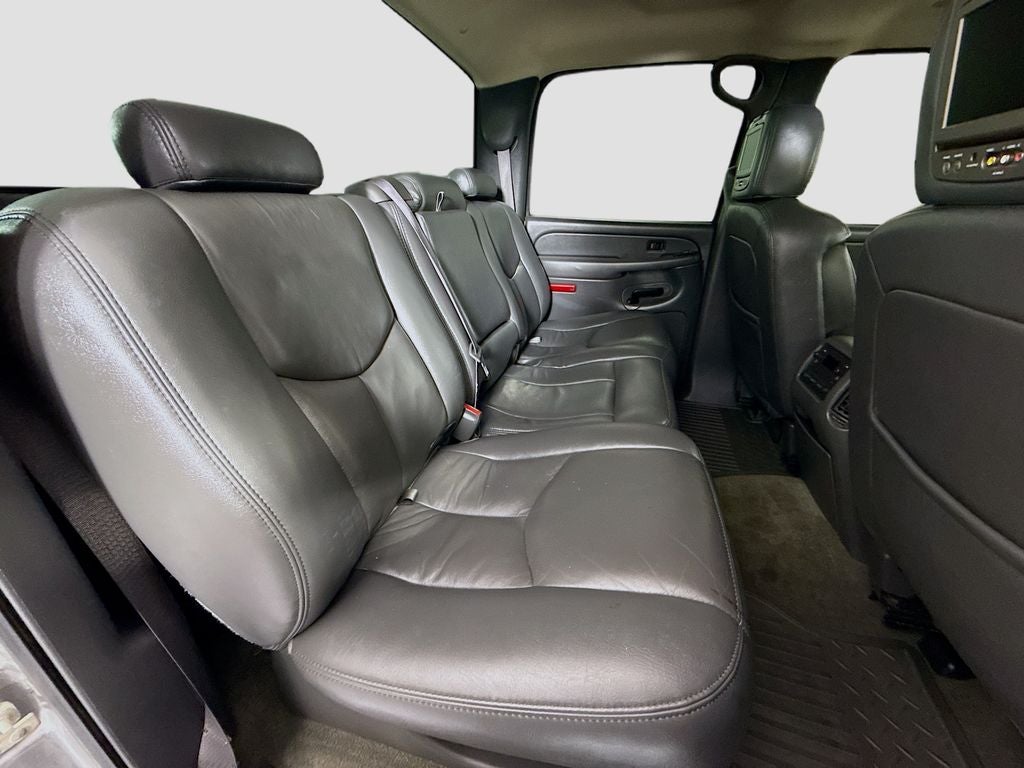

• Seats, rear bench, 3-passenger, folding (includes child seat top tether anchor) (Not available with Regular Cab models.)
• Floor covering, Black rubberized-vinyl

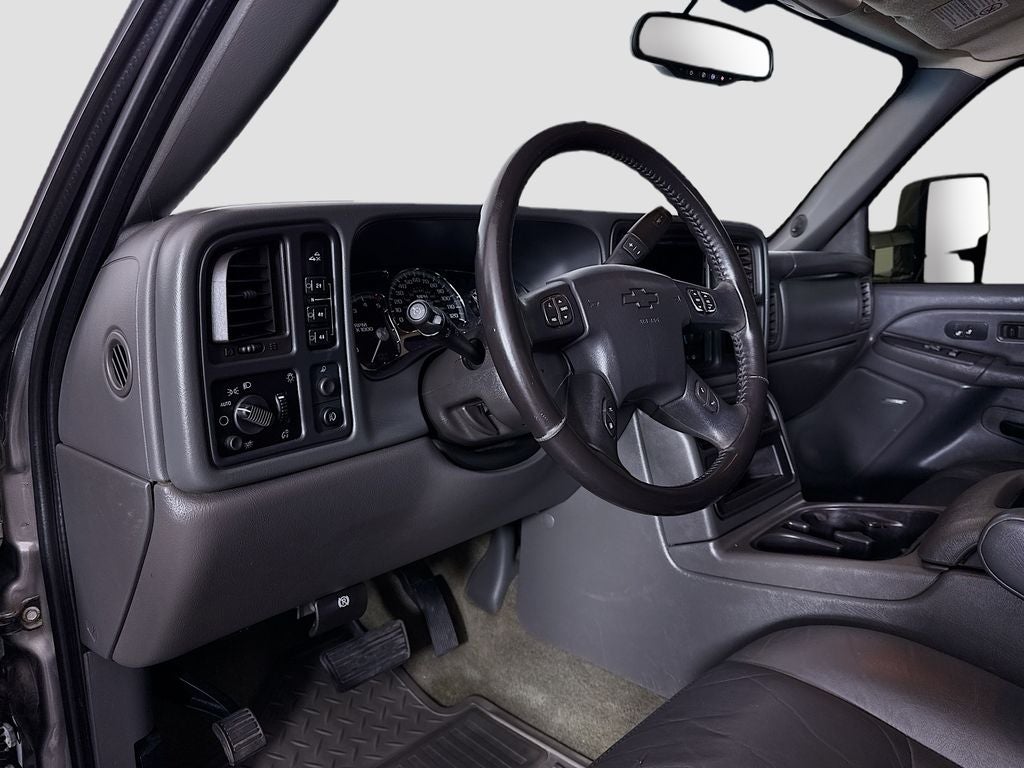

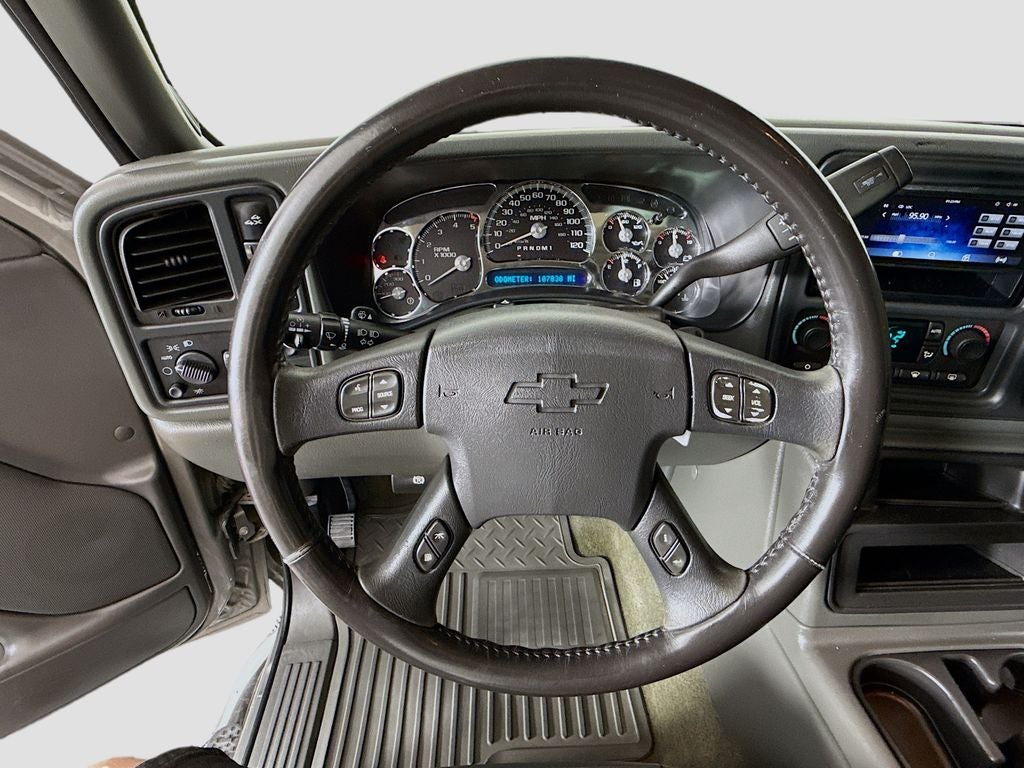

• Steering wheel, includes theft-deterrent locking feature
• Theft-deterrent system, vehicle, PASSlock II
• Driver Information Center that monitors numerous different systems depending on vehicle equipment
• Warning tones, headlamp on, key-in-ignition, driver and passenger buckle-up reminder and turn signal on

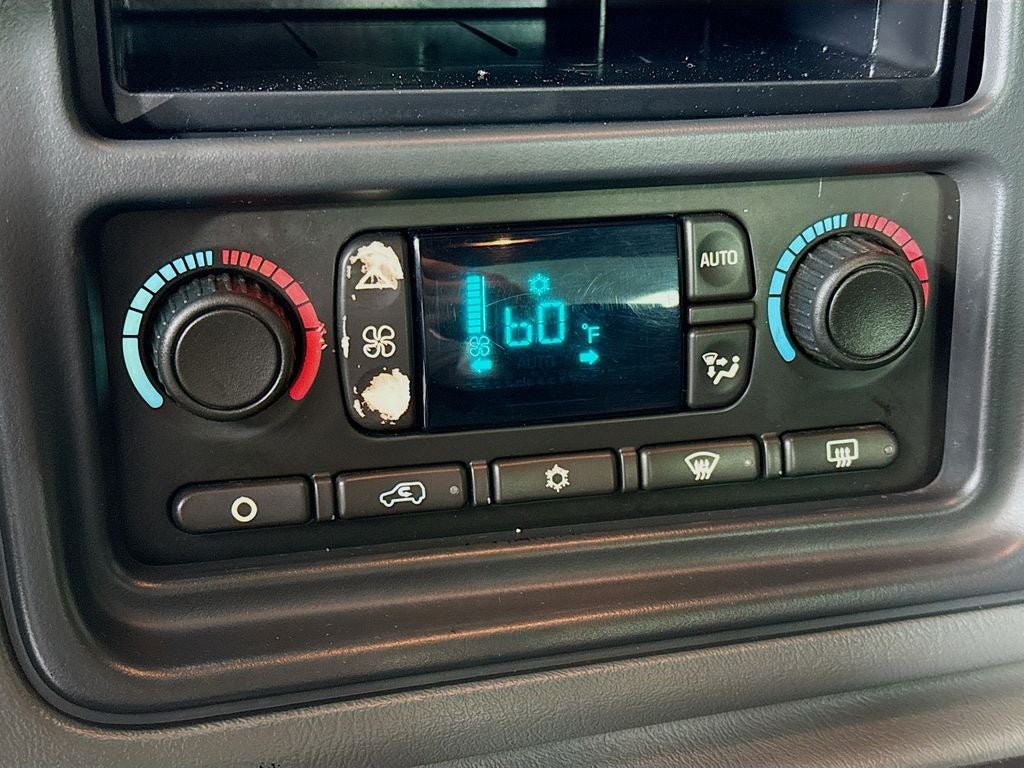

• Air conditioning, dual-zone manual climate control with individual climate settings for driver and right-front passenger

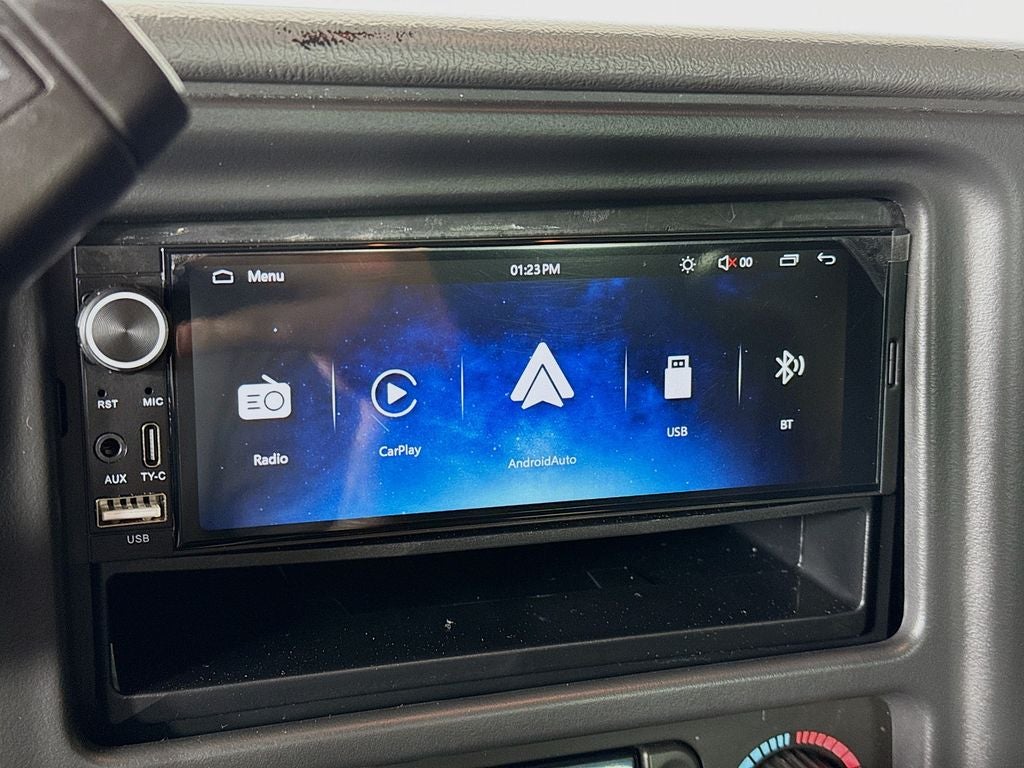

• Audio system, AM/FM stereo with seek-and-scan and digital clock

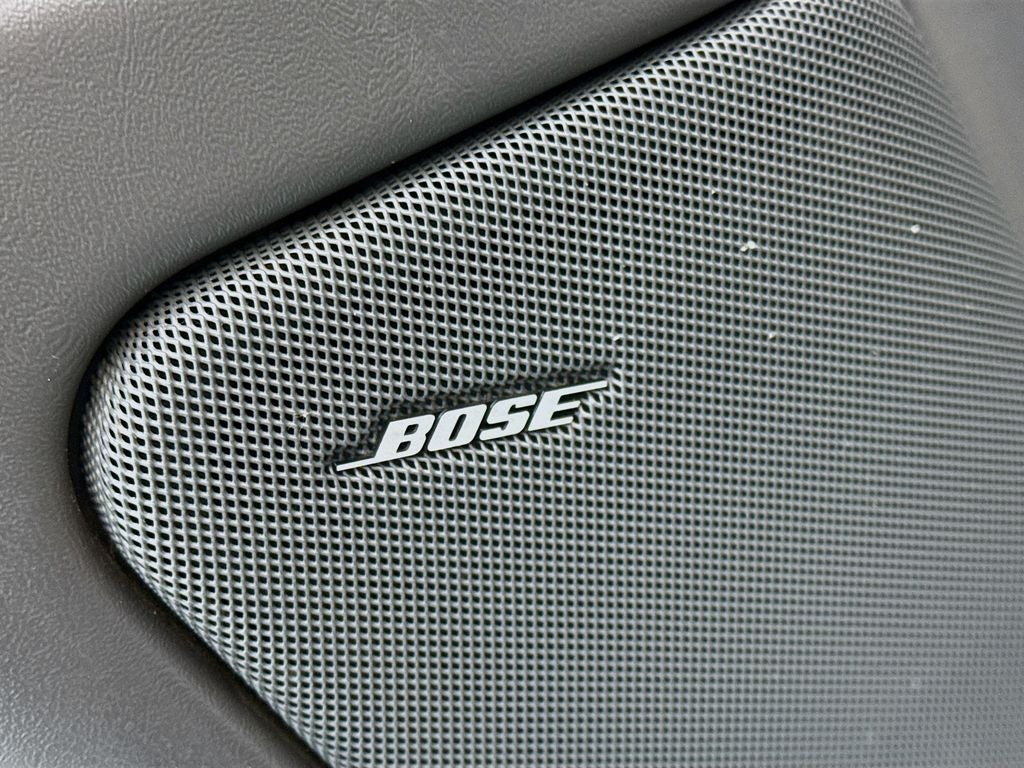

• Audio system feature, 4-speaker system
• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models.)
• Cigarette lighter, on instrument panel
• Power outlets, 2 auxiliary instrument panel-mounted with covers, 12-volt
• Mirror, inside rearview manual day/night
• Visors, driver and front passenger, padded with cloth trim, extenders, pocket on driver-side and vanity mirror on passenger-side, Shale-colored
• Assist handle, front passenger (Also includes rear outboard passenger assist handles on Extended and Crew Cab models.)
• Coat hook, driver-side rear (Also includes passenger-side coat hook on Extended and Crew Cab models.)
• Lighting, interior with dome and reading lights, backlit instrument panel switches and door handle-activated illuminated entry

• Brakes, 4-wheel antilock, 4-wheel disc
• Air bags, frontal, driver and right-front passenger (Regular and Extended Cab models includes passenger-side deactivation switch. Never place a rear- facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. Always use safety belts and the correct child restraints for your childs age and size. Children are safer when properly secured in a rear seat. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Daytime Running Lamps, with automatic exterior lamp control

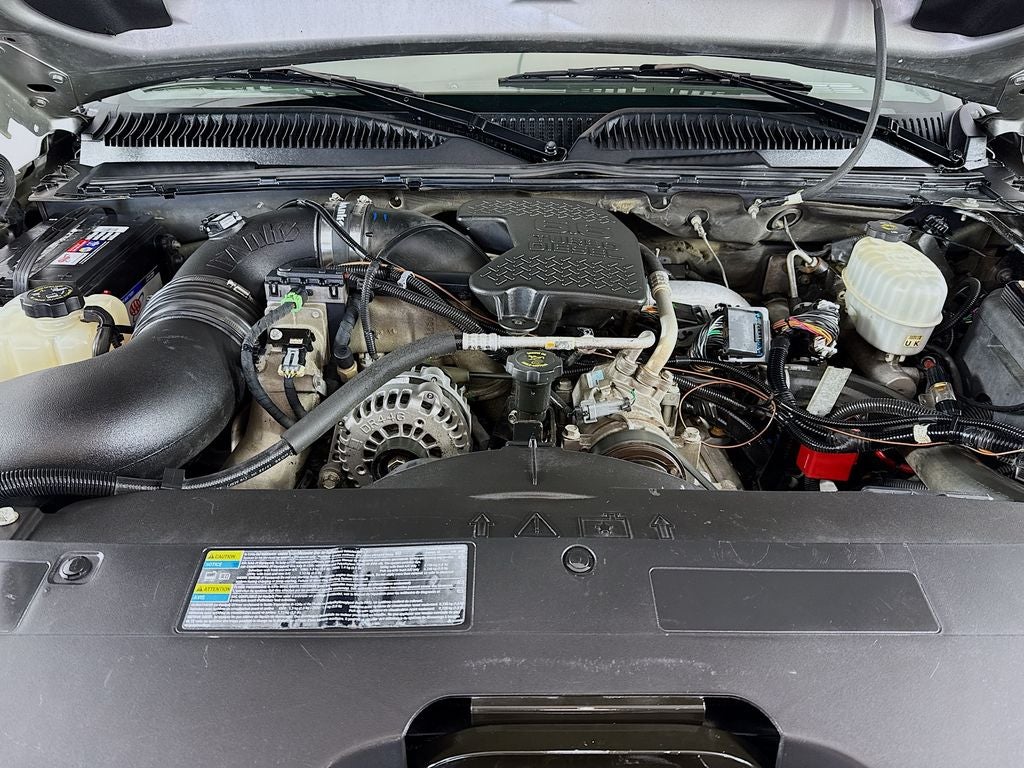

ENGINE, DURAMAX 6.6L TURBO DIESEL V8

• (360 hp [268.0 kW] @ 3200 rpm
• 650 lb-ft of torque [881.0 N-m] @ 1600 rpm) Includes (TQ3) heavy-duty dual
• 770 cold-cranking amp battery
• (KG3) 145-amp alternator
• (K47) high-capacity air cleaner and (K05) engine block heater)

• Heavy-Duty Handling/Trailering Suspension Package
• AM/FM radio
• Air Conditioning
• Front dual zone A/C
• Power steering
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Front anti-roll bar
• Front wheel independent suspension
• Fully automatic headlights
• Electronic Cruise Control w/Set & Resume Speed
• Bumpers: chrome
• Rear Chrome Step-Style Bumper w/Pad
• Rear step bumper
• Driver door bin
• Passenger vanity mirror

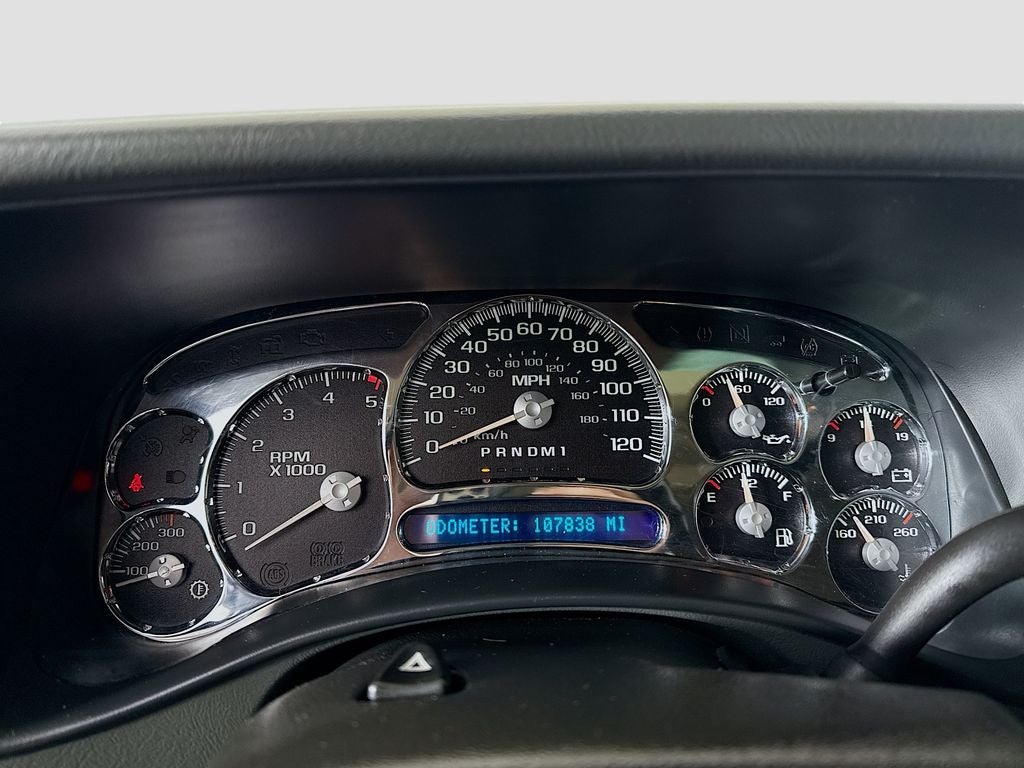

• Tachometer
• Tilt steering wheel
• Voltmeter
• Split folding rear seat
• Passenger door bin
• Solar-Ray Deep-Tinted Glass
• Variably intermittent wipers
• 4.10 Rear Axle Ratio

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 770
• Cold Cranking Amps @ 0° F (Primary): 600
• Cold Cranking Amps @ 0° F (2nd): 770
• Maximum Alternator Capacity (amps): 145
• Maximum Alternator Capacity (amps): 105
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Total Cooling System Capacity (qts): 16.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4670
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 3331
• Curb Weight - Rear (lbs): 2424
• Gross Vehicle Weight Rating Cap (lbs): 9200
• Gross Combined Wt Rating (lbs): 22000
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 12000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9800
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1470
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 14200
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9800
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3550
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2450
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 6900
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 36
• Shock Absorber Diameter - Rear (mm): 36
• Stabilizer Bar Diameter - Front (in): 1.25
• Brakes
• Brake Type: Pwr
• Brake ABS System: Four-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.1
• Tires
• Front Tire Order Code: QIZ
• Rear Tire Order Code: QIZ
• Spare Tire Order Code: QIZ
• Front Tire Size: LT245/75R16
• Rear Tire Size: LT245/75R16
• Spare Tire Size: LT245/75R16
• Front Tire Capacity (lbs): 2335
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): 2335
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -

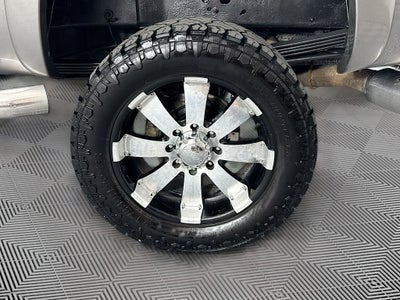

• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 49.6
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: LH
• Exterior Dimensions
• Wheelbase (in): 153.0
• Length, Overall w/o rear bumper (in): 239.7
• Width, Max w/o mirrors (in): 79.7
• Height, Overall (in): 77.0
• Overhang, Front (in): 37.0
• Overhang, Rear w/o bumper (in): 52.2
• Front Bumper to Back of Cab (in): 148.1
• Cab to Axle (in): 41.9
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 10.6
• Ground Clearance, Rear (in): 13.6
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.7
• Cargo Box Width @ Top, Rear (in): 61.9
• Cargo Box Width @ Floor (in): 64.8
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 19.5
• Tailgate Width (in): 61.9
• Cargo Volume (ft³): 56.9
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 61.4
• Second Head Room (in): 39.0
• Second Leg Room (in): 39.1
• Second Shoulder Room (in): 65.1
• Second Hip Room (in): 62.9
• Summary

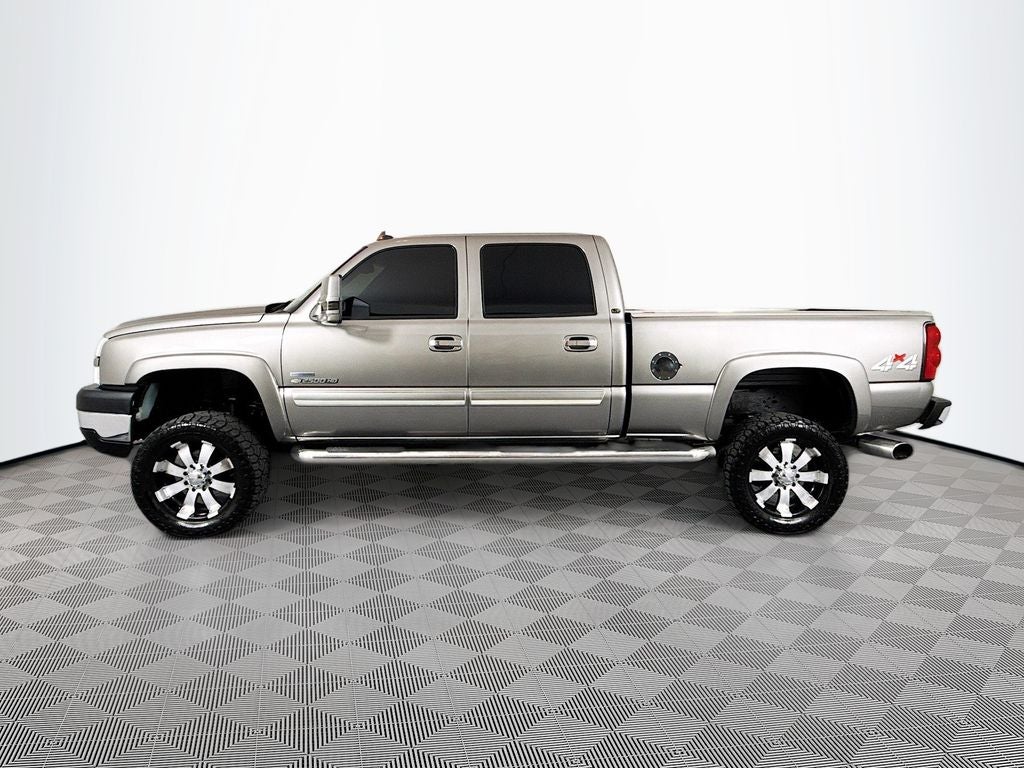

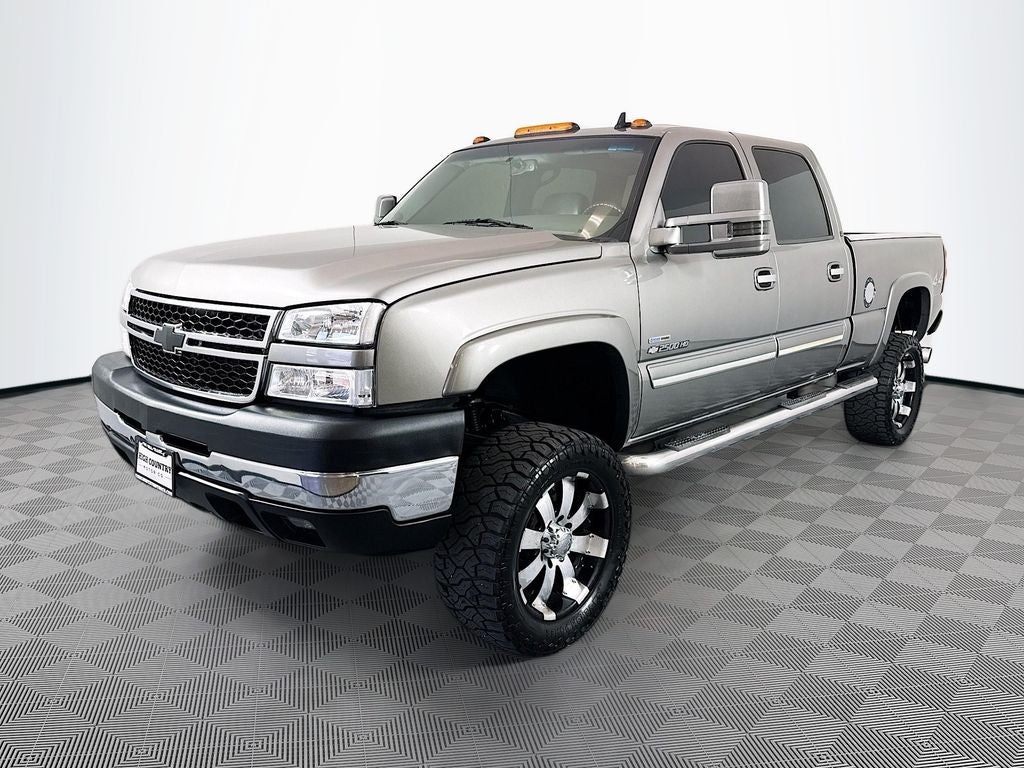

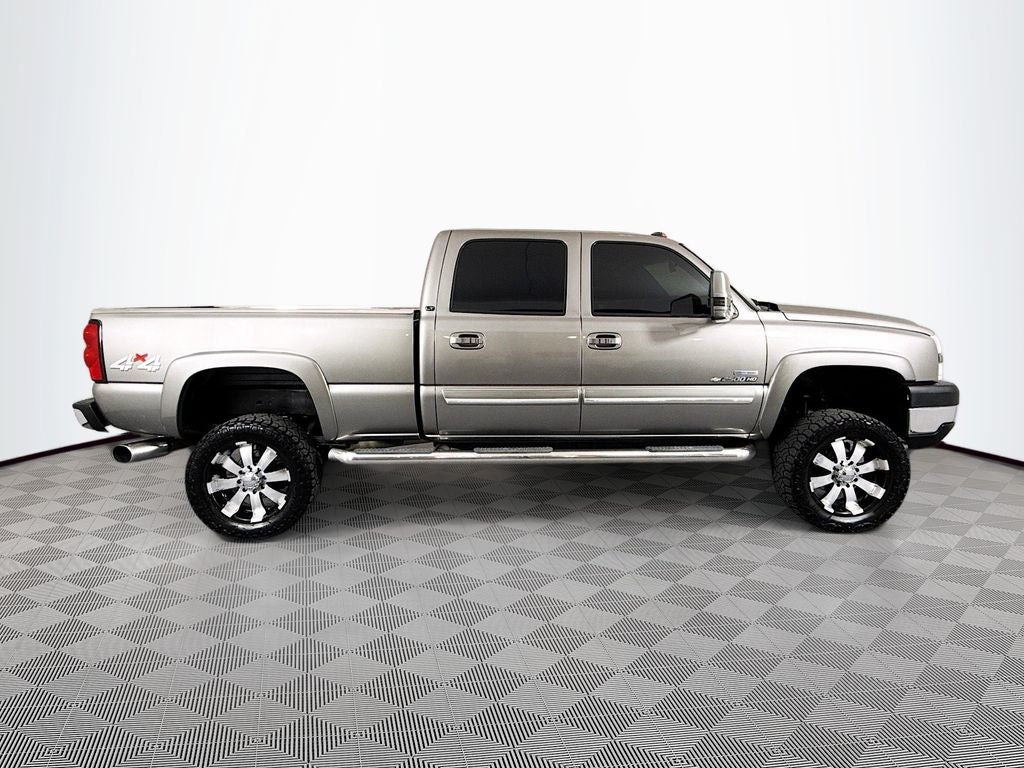

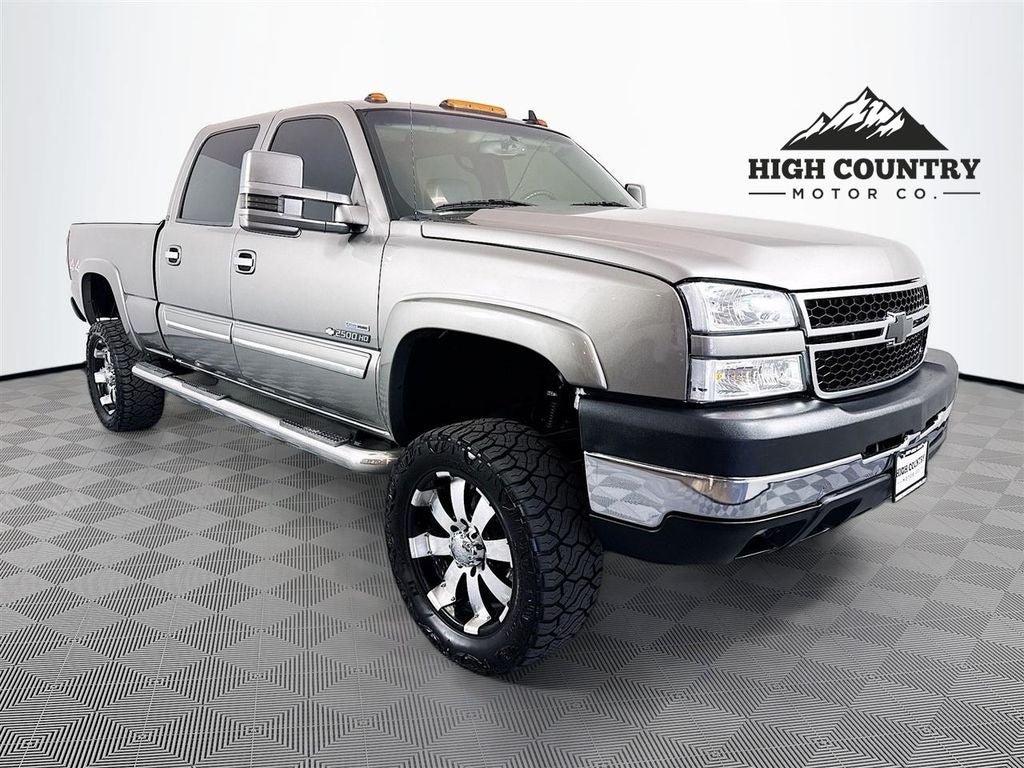

• Vehicle Name: Chevrolet Silverado 2500HD Classic
• Body Style: Crew Cab 6.5' Fleetside
• Body Code: E63
